0ZCA0110FF2E
lmages are for reference only.0ZCA0110FF2E
PTC RESET FUSE 6V 1.1A 1206
Datasheet1206 (3216 Metric), Concave
78,656 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 6V 1.1 A Ih Surface Mount 1206 (3216 Metric), Concave
0ZCA0110FF2E
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Bel Fuse Inc. |
| Series | 0ZCA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | |
| Type | Polymeric |
| Voltage - Max | 6V |
| Current - Hold (Ih) (Max) | 1.1 A |
| Current - Trip (It) | 2.2 A |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.128" L x 0.065" W (3.25mm x 1.65mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.039" (1.00mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 300 ms |
| Resistance - Initial (Ri) (Min) | 40 mOhms |
| Resistance - Post Trip (R1) (Max) | 180 mOhms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

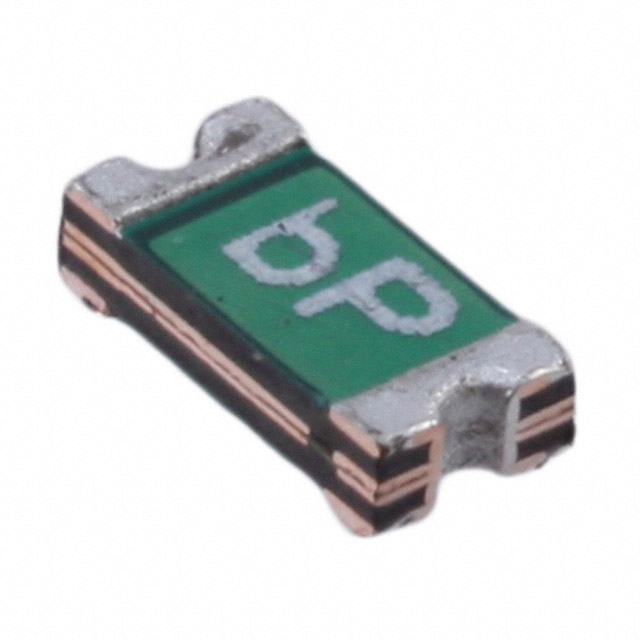

| Part Number | 0ZCA0100FF2E | 0ZCA0150FF2C | 0ZAF0005FF28 | 0ZAF0008FF28 |
| Manufacturer | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. | Bel Fuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | PTC RESET FUSE 6V 1A 1206 | PTC RESET FUSE 6V 1.5A 1206 | LINE VOLTAGE RATED SURFACE MOUNT | LINE VOLTAGE RATED SURFACE MOUNT |
| Series | 0ZCA | 0ZCA | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
