Product CatalogPart Number
1824077
Manufacturer
Phoenix ContactDescription
PLUG COMPONENT NOMINAL CURRENT
Datasheet
DatasheetPackage
-
In Stock
27,405 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
1824077
1824077
lmages are for reference only.Payment Methods
Delivery Services
10 Position Terminal Block Plug, Male Pins 0.200" (5.08mm) 180° Free Hanging (In-Line)
Quick Inquiry
1824077
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | Phoenix Contact |
| Series | COMBICON IC |
| Packaging | Bulk |
| RoHS Status | |
| Base Product Number | - |
| Type | Plug, Male Pins |
| Number of Positions | 10 |
| Positions Per Level | 10 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 12A |
| Voltage - IEC | 320 V |
| Wire Gauge or Range - AWG | - |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Color | Black |
| Operating Temperature | -40°C ~ 100°C |
| Contact Mating Finish | Tin |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | - |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Wire Strip Length | 7mm |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA), Nylon |
| Contact Tail Length | - |
| Insulation Height | 0.591" (15.00mm) |
| Current - UL | 10 A |
| Voltage - UL | 300 V |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

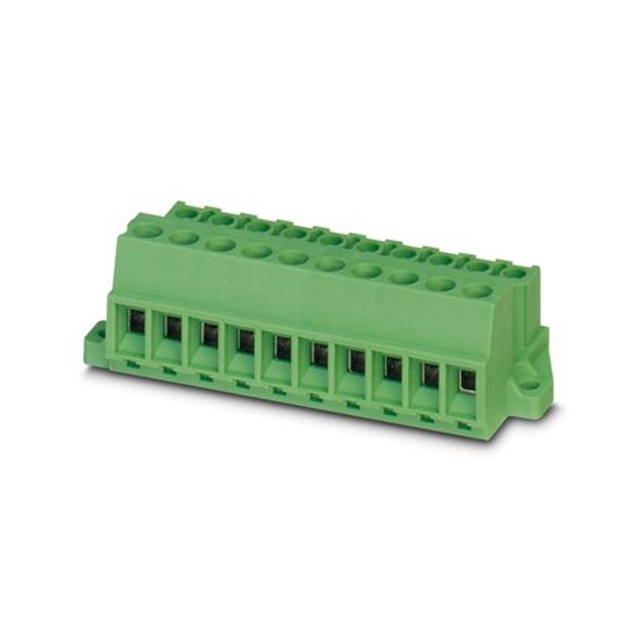

| Part Number | 1824120 | 1824133 | 1824146 | 1824159 |
| Manufacturer | Phoenix Contact | Phoenix Contact | Phoenix Contact | Phoenix Contact |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | TERM BLOCK RCPT 2POS 5.08MM | TERM BLOCK RCPT 3POS 5.08MM | TERM BLOCK RCPT 4POS 5.08MM | TERM BLOCK RCPT 5POS 5.08MM |
| Series | COMBICON MSTBU | COMBICON MSTBU | COMBICON MSTBU | COMBICON MSTBU |
| Packaging | Bulk | Bulk | Bulk | Bulk |
