36502C47NJTDG

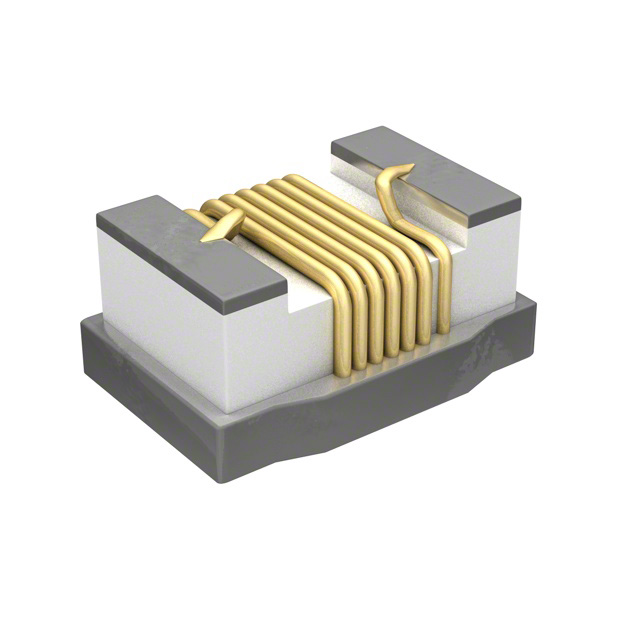

lmages are for reference only.36502C47NJTDG
FIXED IND 47NH 1A 160 MOHM SMD
Datasheet1008 (2520 Metric)
97,410 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
47 nH Unshielded Wirewound Inductor 1 A 160mOhm Max 1008 (2520 Metric)
36502C47NJTDG
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TE Connectivity Passive Product |
| Series | 3650, Sigma Inductors |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 47 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 160mOhm Max |
| Q @ Freq | 65 @ 350MHz |
| Frequency - Self Resonant | 1.5GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 50 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 36502C4R7JTDG | 36501E10NJ | 36501E11NJTDG | 36501E12NJTDG |
| Manufacturer | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 4.7UH 260MA 4 OHM SMD | FIXED IND 10NH 480MA 195MOHM SMD | FIXED IND 11NH 640MA 120MOHM SMD | FIXED IND 12NH 640MA 120MOHM SMD |
| Series | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product | TE Connectivity Passive Product |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
