Product CatalogPart Number
391-104-524-202
Manufacturer
EDAC Inc.Description
CONN EDGE DUAL FML 104POS 0.100
Datasheet
DatasheetPackage
-
In Stock
46,381 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
391-104-524-202
391-104-524-202
lmages are for reference only.Payment Methods
Delivery Services
104 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Quick Inquiry
391-104-524-202
Specifications
| Category | Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors |
| Manufacturer | EDAC Inc. |
| Series | 391 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 52 |
| Number of Positions | 104 |
| Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
| Number of Rows | 2 |
| Pitch | 0.100" (2.54mm) |
| Read Out | Dual |
| Features | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Type | Semi Bellows |
| Color | Black |
| Flange Feature | Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia |
| Operating Temperature | -40°C ~ 105°C |
| Material - Insulation | Polyester Thermoplastic |
| Termination Rows | 2 |
| Base Product Number | 391-104 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

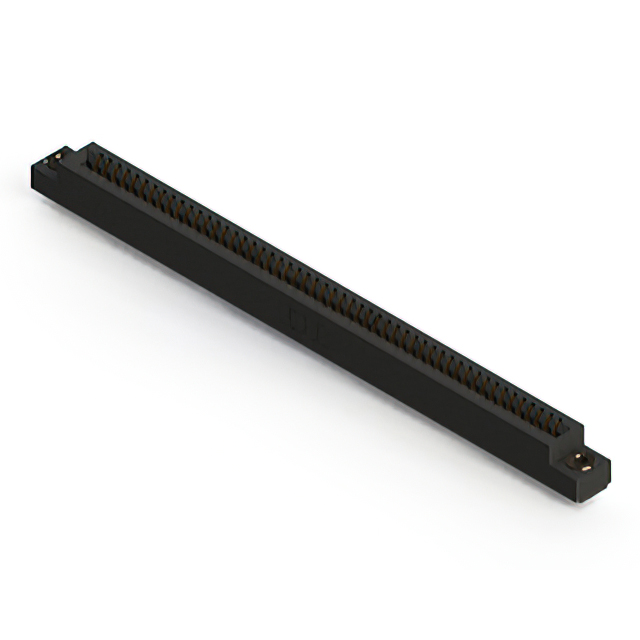

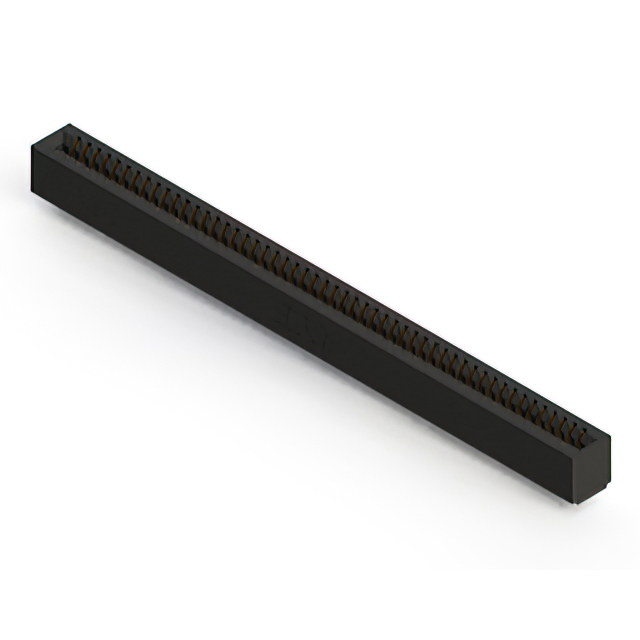

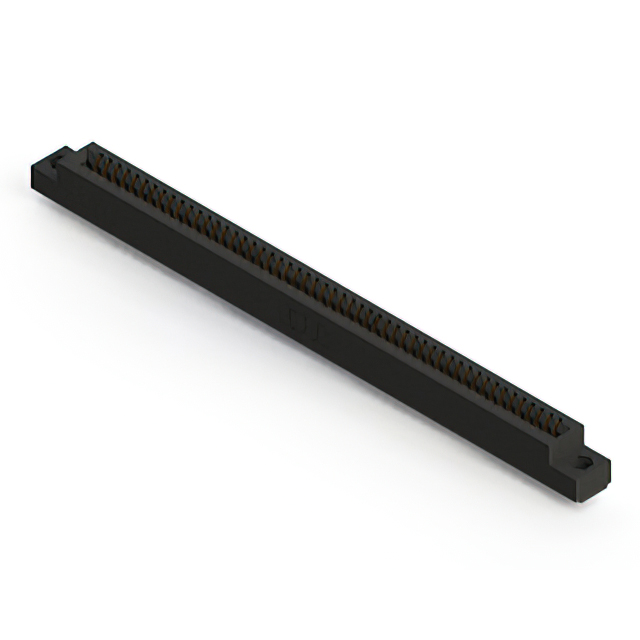

| Part Number | 391-104-524-201 | 391-104-524-203 | 391-104-524-204 | 391-104-524-207 |
| Manufacturer | EDAC Inc. | EDAC Inc. | EDAC Inc. | EDAC Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN EDGE DUAL FML 104POS 0.100 | CONN EDGE DUAL FML 104POS 0.100 | CONN EDGE DUAL FML 104POS 0.100 | CONN EDGE DUAL FML 104POS 0.100 |
| Series | 391 | 391 | ||
| Packaging | Box | Box |
Customers Also Interested in
Recommended Products

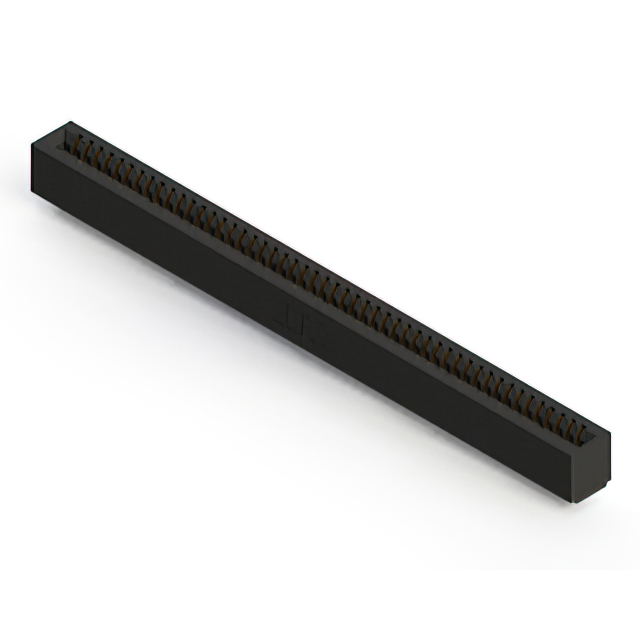

391-100-520-201
EDAC Inc.
391-100-520-202
EDAC Inc.
391-100-520-203
EDAC Inc.

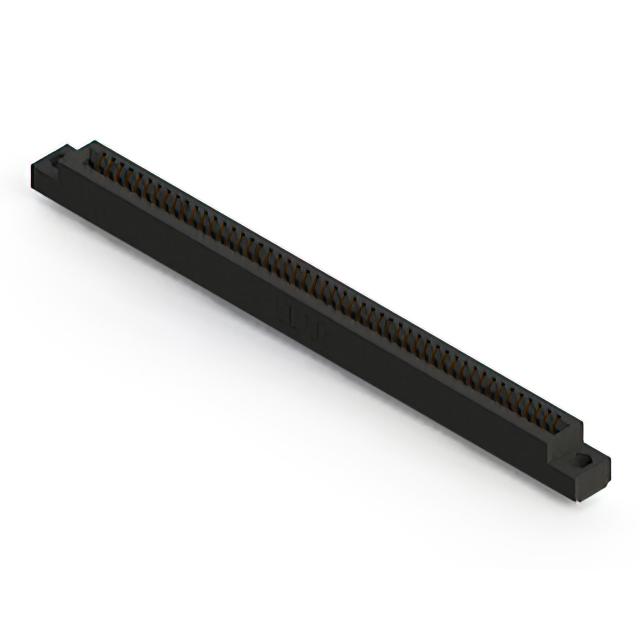

391-100-520-204
EDAC Inc.
391-100-520-207
EDAC Inc.
391-100-520-208
EDAC Inc.
391-100-521-201
EDAC Inc.
391-100-521-202
EDAC Inc.
391-100-521-203
EDAC Inc.
391-100-521-204
EDAC Inc.
391-100-521-207
EDAC Inc.
391-100-521-208
EDAC Inc.
391-100-522-201
EDAC Inc.
391-100-522-202
EDAC Inc.
391-100-522-203
EDAC Inc.
391-100-522-204
EDAC Inc.
391-100-522-207
EDAC Inc.

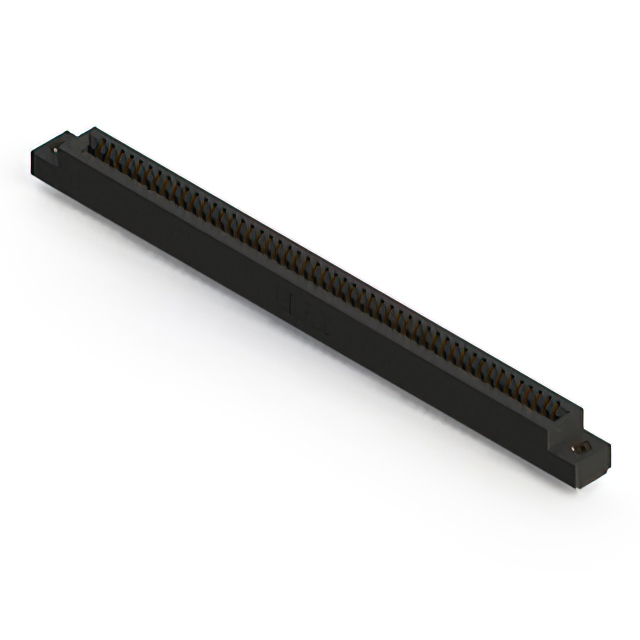

391-100-522-208
