3KP150A_R2_00001
lmages are for reference only.3KP150A_R2_00001
SURFACE MOUNT TRANSIENT VOLTAGE
DatasheetP600, Axial
63,900 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
243V Clamp 12.4A Ipp Tvs Diode Through Hole P600
3KP150A_R2_00001
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Panjit International Inc. |
| Series | 3KP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 150V |
| Voltage - Breakdown (Min) | 167V |
| Voltage - Clamping (Max) @ Ipp | 243V |
| Current - Peak Pulse (10/1000µs) | 12.4A |
| Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | P600, Axial |
| Supplier Device Package | P600 |
| Base Product Number | 3KP150 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

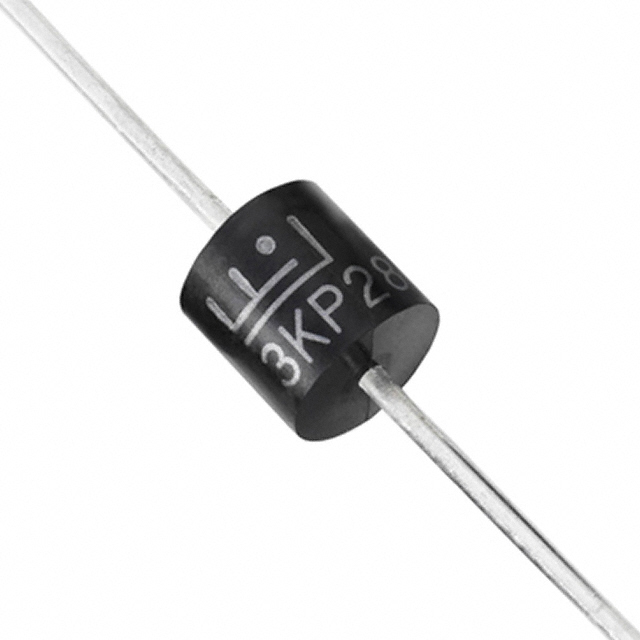

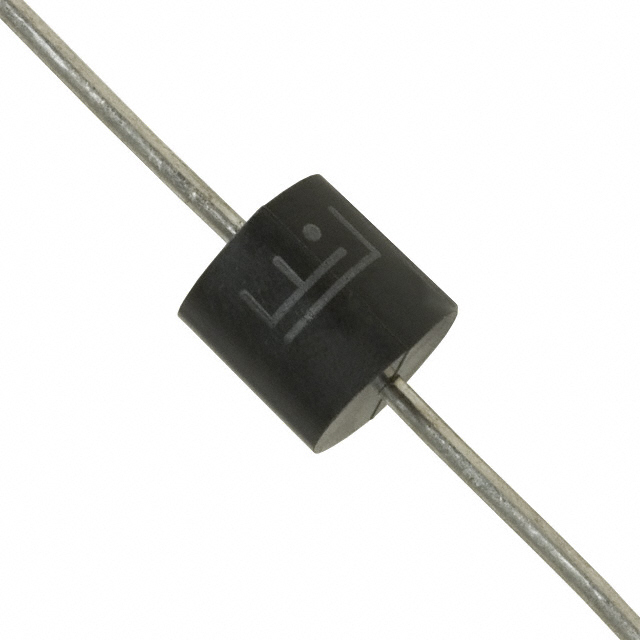

| Part Number | 3KP150 | 3KP150-B | 3KP150A | 3KP150A-AT/B |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | YAGEO |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 150VWM 255.15VC P600 | TVS DIODE 150VWM 255.15VC P600 | TVS DIODE 150VWM 243VC P600 | TVS P600 150V 243V AUTO BOX |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | YAGEO |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Box (TB) |
