40IMX7-15-15-8

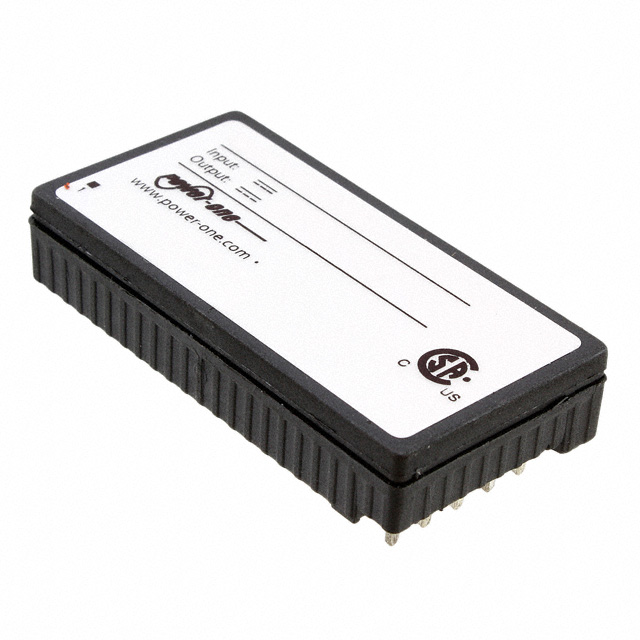

lmages are for reference only.40IMX7-15-15-8
DC DC CONVERTER 15V 15V 7W
Datasheet14-DIP Module, 9 Leads
82,167 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module, Conformal Coated DC DC Converter 2 Output 15V 15V 240mA, 240mA 16.8V - 75V Input
40IMX7-15-15-8
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bel Power Solutions |
| Series | Melcher IMX7 (7W) |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Isolated Module, Conformal Coated |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 16.8V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | 15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 240mA, 240mA |
| Power (Watts) | 7 W |
| Applications | ITE (Commercial), Railway |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 84% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP Module, 9 Leads |
| Size / Dimension | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | 40IMX7 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
|
 |
 |
| Part Number | 40IMX7-15-15-8G | 40IMX7-15-15-8G | 40IMX7-15-15-9 | 40IMX7-12-12-8 |
| Manufacturer | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | DC DC CONVERTER 15V 15V 7W | DC DC CONVERTER 15V 15V 7W | DC DC CONVERTER 15V 15V 7W | DC DC CONVERTER 12V 12V 7W |
| Series | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| Packaging | Bulk | Bulk | Tube | Bulk |
