450-10-236-00-001000
lmages are for reference only.450-10-236-00-001000
CONN HEADER VERT 36POS 2.54MM
Datasheet-
79,883 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Through Hole 36 position 0.100" (2.54mm)
450-10-236-00-001000
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Mill-Max Manufacturing Corp. |
| Series | 450 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.166" (4.22mm) |
| Contact Length - Post | 0.156" (3.96mm) |
| Overall Contact Length | 0.477" (12.12mm) |
| Insulation Height | 0.110" (2.79mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Gold |
| Contact Material | Brass Alloy |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Applications | - |
| Base Product Number | 450-10 |
| Product Attribute |  |
|
 |
 |

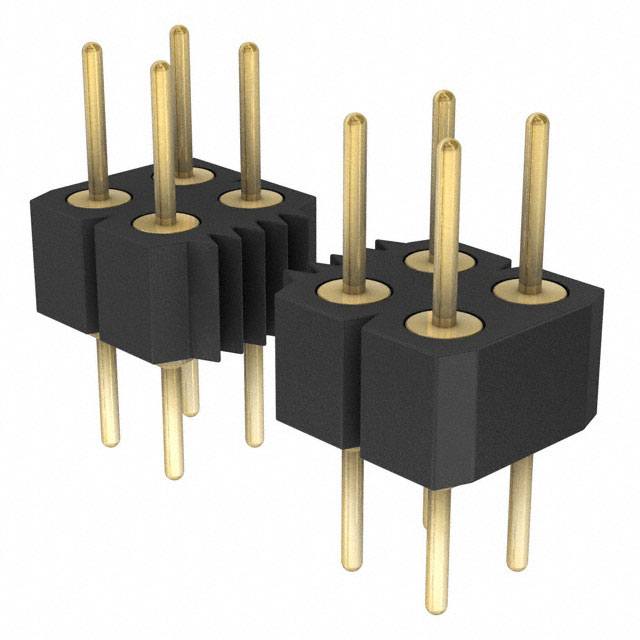

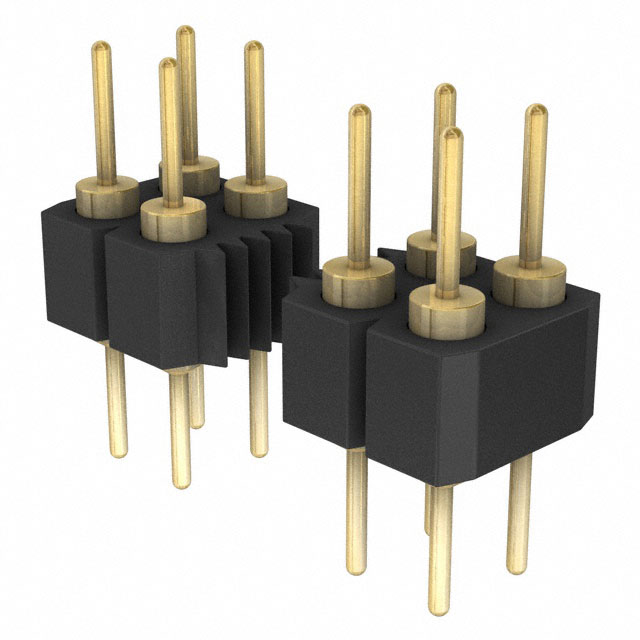

| Part Number | 450-10-236-00-001101 | 450-10-236-00-006000 | 450-10-236-00-006101 | 450-10-236-00-013101 |
| Manufacturer | Preci-Dip | Mill-Max Manufacturing Corp. | Preci-Dip | Preci-Dip |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CONN HEADER VERT 36POS 2.54MM | CONN HEADER VERT 36POS 2.54MM | CONN HEADER VERT 36POS 2.54MM | CONN HEADER VERT 36POS 2.54MM |
| Series | 450 | 450 | 450 | 450 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
