474CKH100M
lmages are for reference only.474CKH100M
CAP ALUM 0.47UF 20% 100V RADIAL
DatasheetRadial, Can
19,232 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.47 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 282.19Ohm @ 120Hz 2000 Hrs @ 105°C
474CKH100M
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | CKH |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 282.19Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12 mA @ 120 Hz |
| Ripple Current @ High Frequency | 27.6 mA @ 100 kHz |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

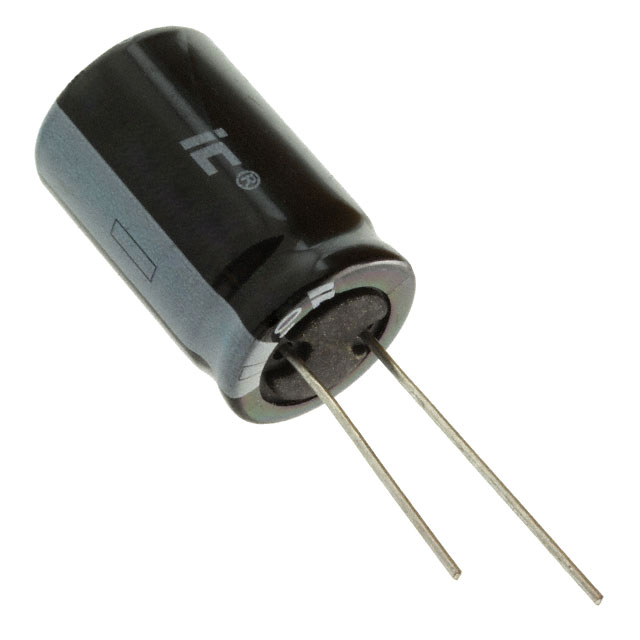

| Part Number | 474CKH100MST | 474CKR050M | 25YXM100MEFR6.3X11 | 16PX100MEFCTA5X11 |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Rubycon | Rubycon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | ELECTROLYTIC/IC | CAP ALUM 0.47UF 20% 50V RADIAL | CAP ALUM 100UF 20% 25V RADIAL TH | CAP ALUM 100UF 20% 16V RADIAL TH |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Rubycon | Rubycon |
| Packaging | Bulk | Bulk | Bulk | Cut Tape (CT)-->Tape & Box (TB) |
