5KP75AHE3/51

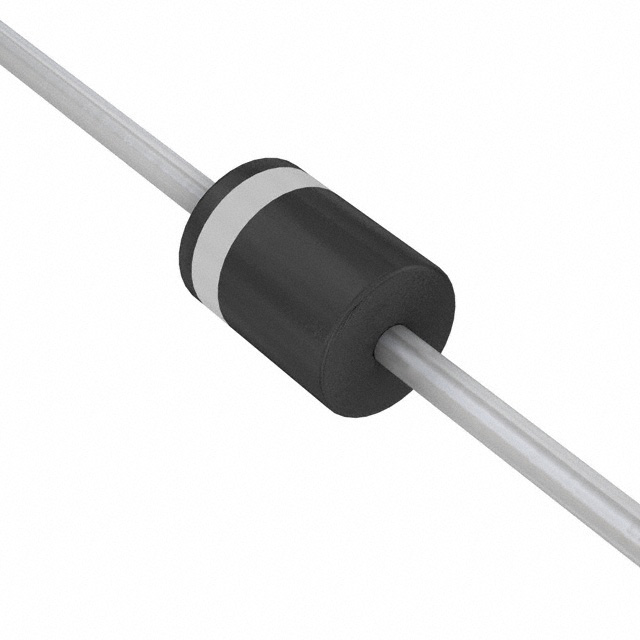

lmages are for reference only.5KP75AHE3/51
TVS DIODE
DatasheetP600, Axial
59,728 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
121V Clamp 41.3A Ipp Tvs Diode Through Hole P600
5KP75AHE3/51
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | TransZorb® |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 75V |
| Voltage - Breakdown (Min) | 83.3V |
| Voltage - Clamping (Max) @ Ipp | 121V |
| Current - Peak Pulse (10/1000µs) | 41.3A |
| Power - Peak Pulse | 5000W (5kW) |
| Power Line Protection | No |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | P600, Axial |
| Supplier Device Package | P600 |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
 |
| Part Number | 5KP75AHE3_A/C | 5KP75A | 5KP75A | 5KP75A-AT/B |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Diotec Semiconductor | Littelfuse Inc. | YAGEO |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TVS DIODE | TVS DIODE 75VWM 121VC P-600 | TVS P600 75V 5000W UNIDIR | TVS P600 75V 121V AUTO BOX |
| Series | Vishay General Semiconductor - Diodes Division | Diotec Semiconductor | Littelfuse Inc. | YAGEO |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Box (TB) |
