AISC-1812H-2R7N-T

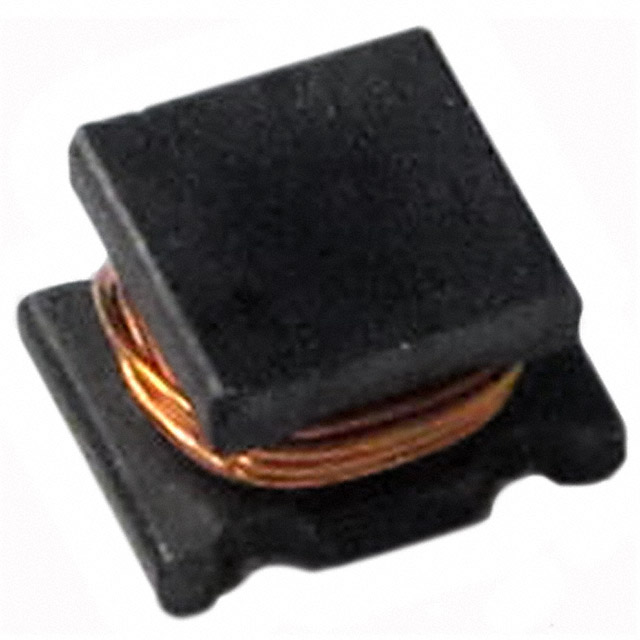

lmages are for reference only.AISC-1812H-2R7N-T
FIXED IND 2.7UH 870MA 120MOHM SM
Datasheet1812 (4532 Metric)
69,903 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.7 µH Unshielded Drum Core, Wirewound Inductor 870 mA 120mOhm Max 1812 (4532 Metric)
AISC-1812H-2R7N-T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | AISC-1812H |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.7 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 870 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 120mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 53MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AISC-1812H-100K-T | AISC-1812H-101K-T | AISC-1812H-102K-T | AISC-1812H-122K-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 650MA 350MOHM SMD | FIXED IND 100UH 190MA 2.96OHM SM | FIXED IND 1MH 50MA 26.4 OHM SMD | FIXED IND 1.2MH 45MA 48 OHM SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
