AOD607_DELTA

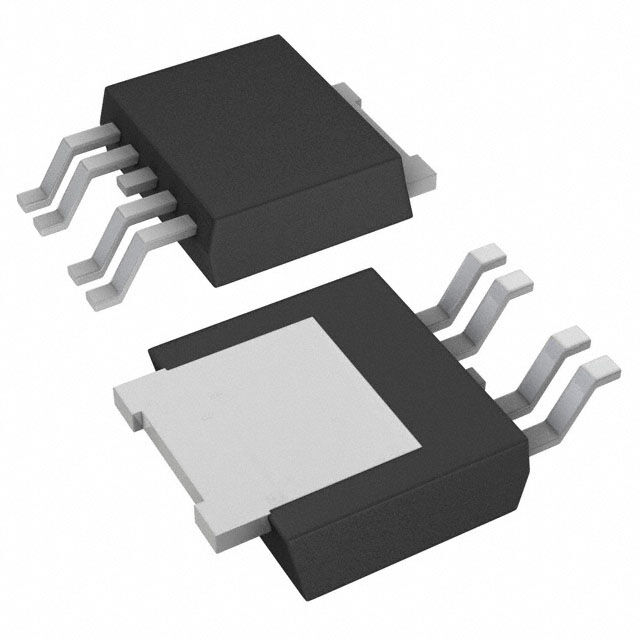

lmages are for reference only.AOD607_DELTA
MOSFET N/P-CH 30V 12A TO252-4L
DatasheetTO-252-5, DPAK (4 Leads + Tab), TO-252AD
54,224 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 30V 12A (Tc) 25W (Tc) Surface Mount TO-252-4L
AOD607_DELTA
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel Complementary |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 12A, 10V, 37mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA, 2.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12.5nC @ 4.5V, 11.7nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1250pF @ 15V, 1100pF @ 15V |
| Power - Max | 25W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Supplier Device Package | TO-252-4L |
| Base Product Number | AOD60 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AOD607 | AOD607A | AOD607_001 | AO3415B |
| Manufacturer | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. | Alpha & Omega Semiconductor Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | MOSFET N/P-CH 30V 12A TO252-4L | MOSFET N/P-CH 30V 8A TO252-4L | MOSFET N/P-CH 30V 12A TO252-4L | MOSFET 2P-CH 30V 6A 8-SOIC |
| Series | - | - | - | * |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
