APC18T12-9L

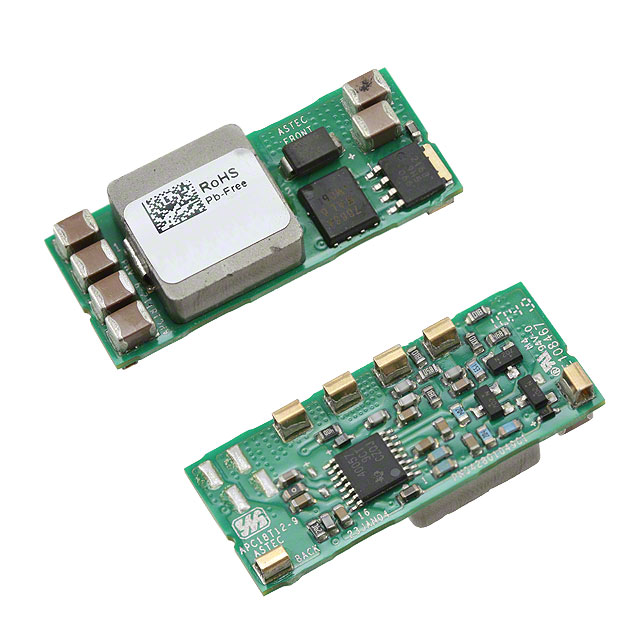

lmages are for reference only.APC18T12-9L
DC DC CONVERTER 0.75-5.5V 75W
Datasheet6-SMD Module
79,393 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 5.5V 18A 10V - 14V Input
APC18T12-9L
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | APC18 (75W) |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10V |
| Voltage - Input (Max) | 14V |
| Voltage - Output 1 | 0.75 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 18A |
| Power (Watts) | 75 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 92% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD Module |
| Size / Dimension | 1.30" L x 0.56" W x 0.34" H (33.0mm x 14.2mm x 8.6mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
|
|
|
| Part Number | APC18T12-9JL | APC18T04-9JL | APC18T04-9JL | APC18T04-9L |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | ||||
| Description | DC DC CONVERTER 0.75-5.5V 75W | DC DC CONVERTER 0.75-3.6V 60W | DC DC CONVERTER 0.75-3.6V 60W | DC DC CONVERTER 0.75-3.6V 60W |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| Packaging | Tray | Tray | Tray | Tape & Reel (TR) |
