APT58MJ50J

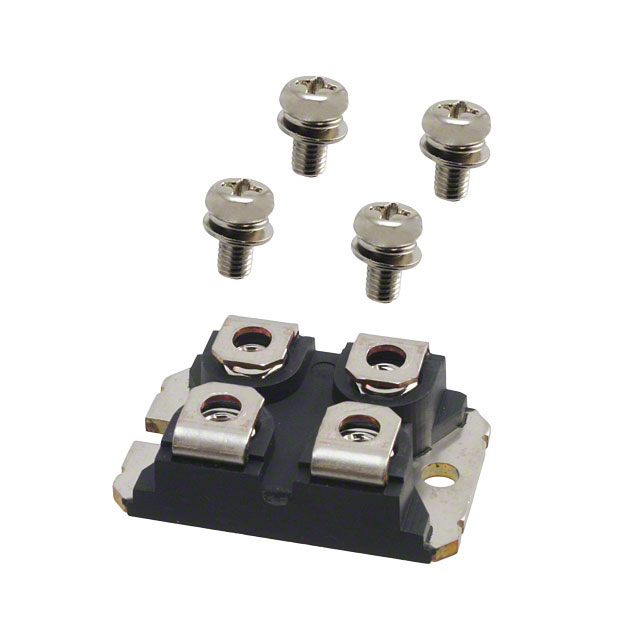

lmages are for reference only.APT58MJ50J
MOSFET N-CH 500V 58A ISOTOP
DatasheetSOT-227-4, miniBLOC
60,149 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 500 V 58A (Tc) 540W (Tc) Chassis Mount ISOTOP®
APT58MJ50J
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Microsemi Corporation |
| Series | POWER MOS 8™ |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 58A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 42A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 2.5mA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 13500 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 540W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Supplier Device Package | ISOTOP® |
| Package / Case | SOT-227-4, miniBLOC |
| Base Product Number | APT58MJ50 |
| Gate Charge (Qg) (Max) @ Vgs | 340 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | APT5010B2FLLG | APT5010B2LLG | APT5010B2VRG | APT5010JFLL |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | MOSFET N-CH 500V 46A T-MAX | MOSFET N-CH 500V 46A T-MAX | MOSFET N-CH 500V 47A T-MAX | MOSFET N-CH 500V 41A ISOTOP |
| Series | POWER MOS 7® | POWER MOS 7® | POWER MOS V® | POWER MOS 7® |
| Packaging | Tube | Tube | Tube | Tube |
