AS5115A-HSSM
lmages are for reference only.AS5115A-HSSM
SENSOR ANGLE 360DEG SMD
Datasheet16-SSOP (0.209", 5.30mm Width)
41,690 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Angle External Magnet, Not Included SMD (SMT) Tab
AS5115A-HSSM
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | ams-OSRAM USA INC. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| For Measuring | Angle |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Cosine, Sine |
| Actuator Type | External Magnet, Not Included |
| Linearity | ±1% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Surface Mount |
| Termination Style | SMD (SMT) Tab |
| Operating Temperature | -40°C ~ 150°C |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SSOP |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Base Product Number | AS5115 |
| Product Attribute |  |
 |
 |
 |
| Part Number | AS5115-HSSM SSOP16 LF T&RDP | AS5115-HSST SSOP16 LF T&RDP | AS5115F-HSSP SSOP16 LF T&RDP | AS5715R-ZTSM TSSOP14 LF T&RDP |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

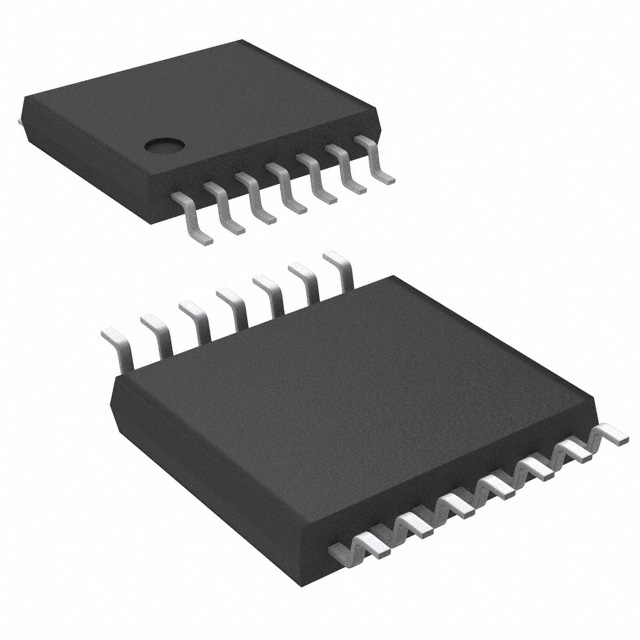

| Description | SENSOR ANGLE 360DEG SMD | SENSOR ANGLE 360DEG SMD | SENSOR ANGLE 360DEG SMD | AS5715R-ZTSM TSSOP14 LF T&RDP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
