ASFL1-27.000MHZ-LCS-T

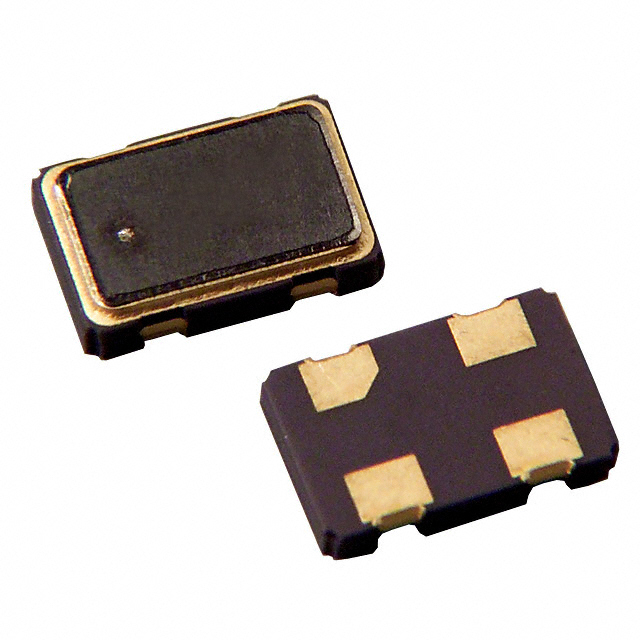

lmages are for reference only.ASFL1-27.000MHZ-LCS-T
XTAL OSC XO 27.000MHZ HCMOS TTL
Datasheet4-SMD, No Lead
35,997 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
27 MHz XO (Standard) TTL Oscillator 3.3V Enable/Disable 4-SMD, No Lead
ASFL1-27.000MHZ-LCS-T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | ASFL1 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 27 MHz |
| Function | Enable/Disable |
| Output | TTL |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 12mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ASFL1-27.000MHZ-EC-T | ASFL1-27.000MHZ-EK-T | ASFL1-27.000MHZ-L-T | ASFL1-1.8432MHZ-EC-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 27.0000MHZ HCMOS TTL | XTAL OSC XO 27.0000MHZ HCMOS TTL | XTAL OSC XO 27.0000MHZ HCMOS TTL | XTAL OSC XO 1.8432MHZ HCMOS TTL |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) |
