ASPIAIG-FLR4020-2R2M-T
lmages are for reference only.ASPIAIG-FLR4020-2R2M-T
FIXED IND 2.2UH 8A 23.5 MOHM SMD
DatasheetNonstandard
35,886 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 µH Shielded Molded Inductor 8 A 23.5mOhm Max Nonstandard
ASPIAIG-FLR4020-2R2M-T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | ASPIAIG-F |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8 A |
| Current - Saturation (Isat) | 4.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 23.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 4020 |
| Size / Dimension | 0.161" L x 0.161" W (4.10mm x 4.10mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

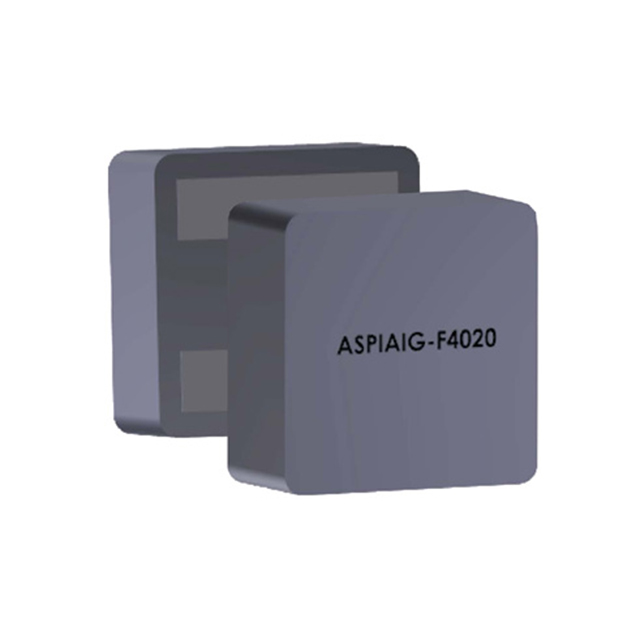

| Part Number | ASPIAIG-FLR4020-1R0M-T | ASPIAIG-FLR4020-1R2M-T | ASPIAIG-FLR4020-1R5M-T | ASPIAIG-FLR4020-2R0M-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 11A 11.7 MOHM SMD | FIXED IND 1.2UH 9.5A 13.4MOHM SM | FIXED IND 1.5UH 9.1A 15.8MOHM SM | FIXED IND 2UH 8.2A 23.3 MOHM SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
