B32672L8102J000
lmages are for reference only.B32672L8102J000
CAP FILM 1000PF 5% 2KVDC RADIAL
DatasheetRadial
63,217 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1000 pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial
B32672L8102J000
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3267*L* - MKP High Current |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1000 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.197" W (18.00mm x 5.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

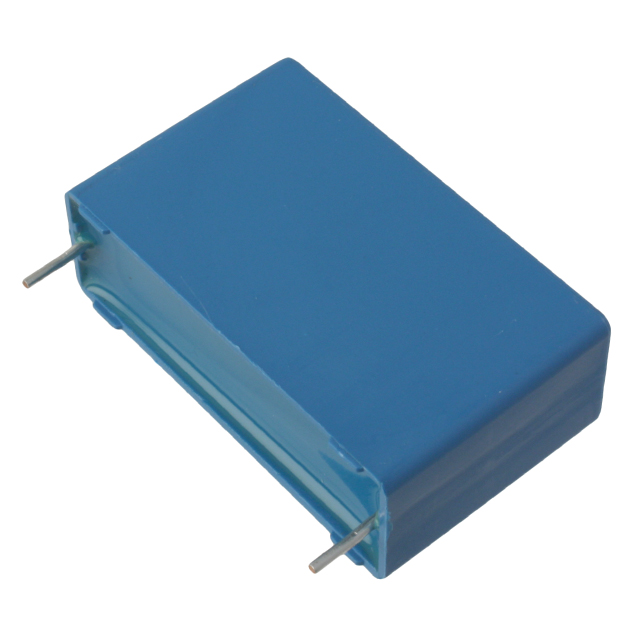

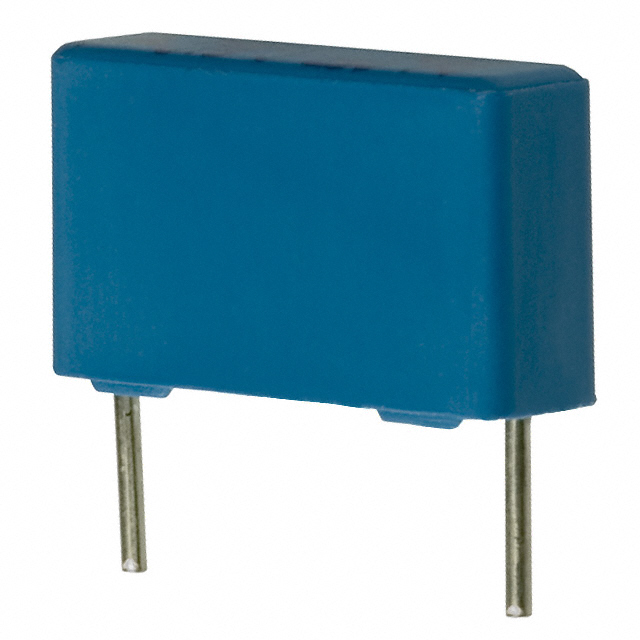

| Part Number | B32672L8102J189 | B32672L8102J289 | B32672L8102K000 | B32672L8103J000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 1000PF 5% 2KVDC RADIAL | CAP FILM 1000PF 5% 2KVDC RADIAL | CAP FILM 1000PF 10% 2KVDC RADIAL | CAP FILM 10000PF 5% 2KVDC RADIAL |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Reel (TR) | Tape & Box (TB) | Bulk | Bulk |
