B82475M1333M000
lmages are for reference only.B82475M1333M000
FIXED IND 33UH 1.5A 120 MOHM SMD
DatasheetNonstandard
53,346 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
33 µH Unshielded Drum Core, Wirewound Inductor 1.5 A 120mOhm Max Nonstandard
B82475M1333M000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B82475M1 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.5 A |
| Current - Saturation (Isat) | 1.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 120mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.409" L x 0.370" W (10.40mm x 9.40mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|

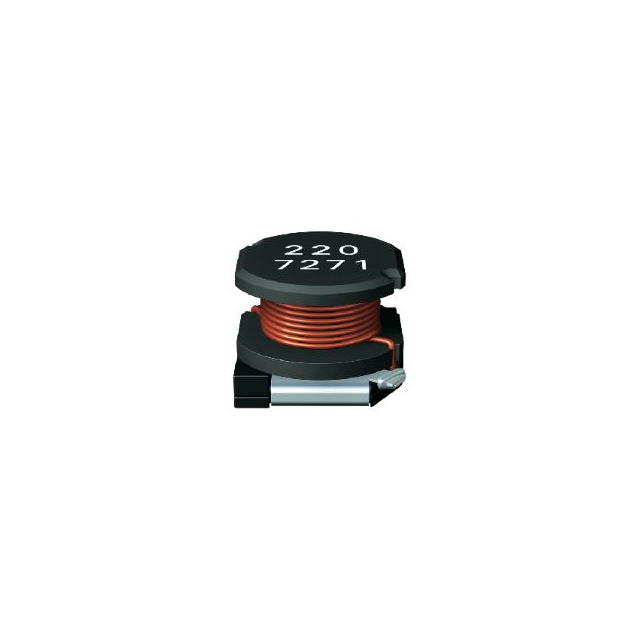

| Part Number | B82475M1333M000 | B82475M1334K000 | B82470A1222M | B82470A1682M |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 33UH 1.5A 120 MOHM SMD | FIXED IND 330UH 520MA 1.15OHM SM | FIXED IND 2.2UH 1.35A 90MOHM SMD | FIXED IND 6.8UH 850MA 228MOHM SM |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
