B85121A2504A101
lmages are for reference only.B85121A2504A101
CAP FEEDTHRU 0.5UF 600V AXIAL
DatasheetAxial - Threaded Terminals
83,684 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.5 µF Feed Through Capacitor 600V 100 A Axial - Threaded Terminals
B85121A2504A101
| Category | Filters - Feed Through Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B85121 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Tolerance | ±20% |
| Voltage - Rated | 600V |
| Current | 100 A |
| DC Resistance (DCR) (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Insertion Loss | 80dB @ 100MHz |
| Temperature Coefficient | - |
| Ratings | - |
| Package / Case | Axial - Threaded Terminals |
| Size / Dimension | 2.165" Dia x 1.181" L (55.00mm x 30.00mm) |
| Height (Max) | - |
| Thread Size | M8 |
| Capacitance | 0.5 µF |
| Mounting Type | - |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | B85121A2504A201 | B85121A2504A630 | B85121A2502C160 | B85121A2503B250 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

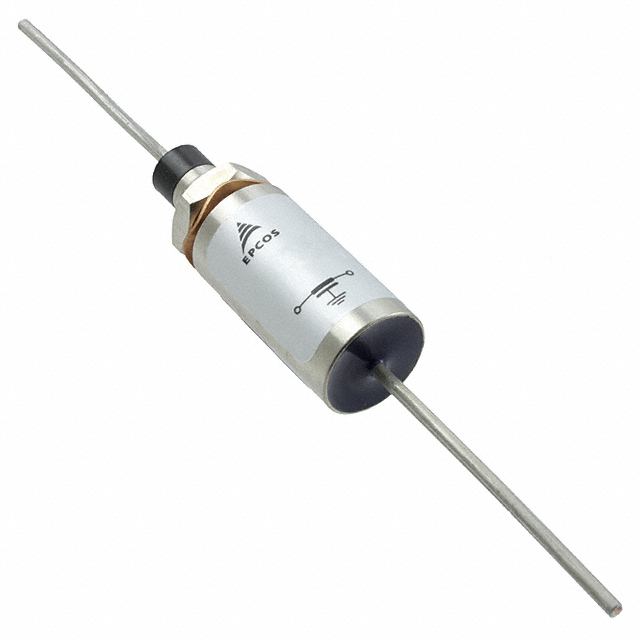

| Description | CAP FEEDTHRU 0.5UF 20% 600V | CAP FEEDTHRU 0.5UF 600V AXIAL | CAP FEEDTHRU 5000PF 600V AXIAL | CAP FEEDTHRU 0.05UF 600V AXIAL |
| Series | B85121 | B85121 | B85121 | B85121 |
| Packaging | Bulk | Bulk | Tray | Bulk |
