BAV23SE

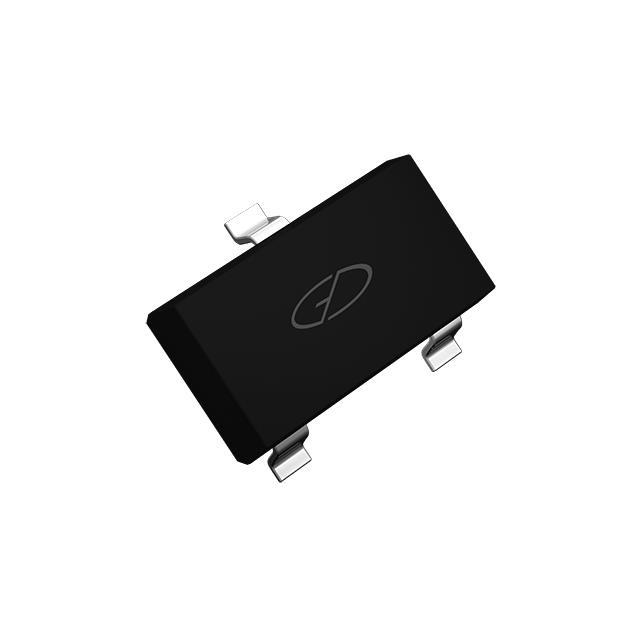

lmages are for reference only.BAV23SE
DIODE ARRAY GP 200V 225MA SOT233
DatasheetTO-236-3, SC-59, SOT-23-3
28,446 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode Array 1 Pair Series Connection 200 V 225mA Surface Mount TO-236-3, SC-59, SOT-23-3
BAV23SE
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Diode Configuration | 1 Pair Series Connection |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) (per Diode) | 225mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 nA @ 200 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Base Product Number | BAV23 |
| Reverse Recovery Time (trr) | 50 ns |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | BAV23S | BAV23S | BAV23S,215 | BAV23S,235 |
| Manufacturer | onsemi | Good-Ark Semiconductor | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

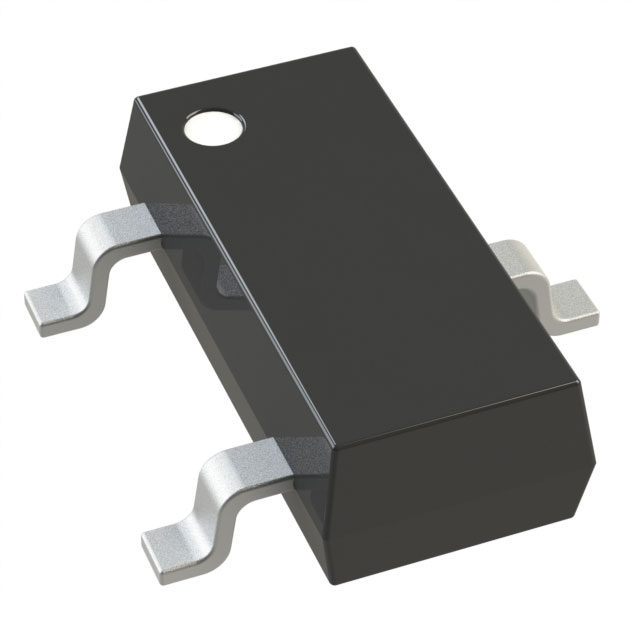

| Description | DIODE ARRAY GP 250V 200MA SOT233 | DIODE ARRAY GP 250V 225MA SOT23 | DIODE ARR GP 200V 225MA TO-236AB | DIODE ARR GP 200V 225MA TO-236AB |
| Series | - | BAV23x | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
