Product CatalogPart Number
CB018D0103JBA
Manufacturer
KYOCERA AVXDescription
CAP FILM 10000PF 5% 63VDC 1206
Datasheet
DatasheetPackage
1206 (3216 Metric)
In Stock
80,006 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CB018D0103JBA
CB018D0103JBA

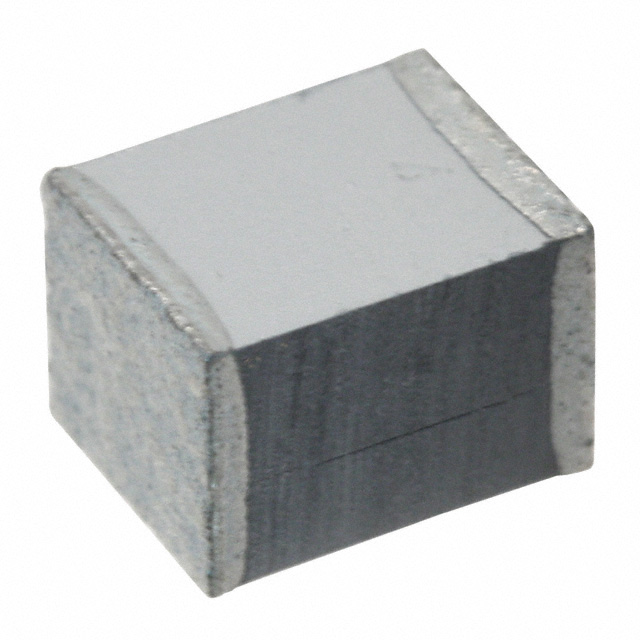

lmages are for reference only.Payment Methods
Delivery Services
10000 pF Film Capacitor 40V 63V Polyphenylene Sulfide (PPS), Metallized - Stacked 1206 (3216 Metric)
Quick Inquiry
CB018D0103JBA
Specifications
| Category | Capacitors - Film Capacitors - |
| Manufacturer | KYOCERA AVX |
| Series | CB |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 10000 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 40V |
| Voltage Rating - DC | 63V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.130" L x 0.063" W (3.30mm x 1.60mm) |
| Height - Seated (Max) | 0.045" (1.15mm) |
| Termination | Solder Pads |
| Lead Spacing | - |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | CB018D0103GBA | CB018D0103KBA | CB018D0102JBA | CB018D0152JBA |
| Manufacturer | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM | CAP FILM | CAP FILM | CAP FILM |
| Series | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX | KYOCERA AVX |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
