CBTL06122AHF,518
lmages are for reference only.CBTL06122AHF,518
IC MULTIPLEXER HEX 1X2 56HWQFN
Datasheet56-WFQFN Exposed Pad
70,517 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
DisplayPort, PCIe Switch IC 6 Channel 56-HWQFN (5x11)
CBTL06122AHF,518
| Category | Integrated Circuits (ICs) - Interface - Analog Switches Special Purpose |
| Manufacturer | NXP USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Applications | DisplayPort, PCIe |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Switch Circuit | - |
| Number of Channels | 6 |
| On-State Resistance (Max) | - |
| Voltage - Supply, Single (V+) | 3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| -3db Bandwidth | 2.5GHz |
| Features | Bi-Directional |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 56-WFQFN Exposed Pad |
| Supplier Device Package | 56-HWQFN (5x11) |
| Base Product Number | CBTL06 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

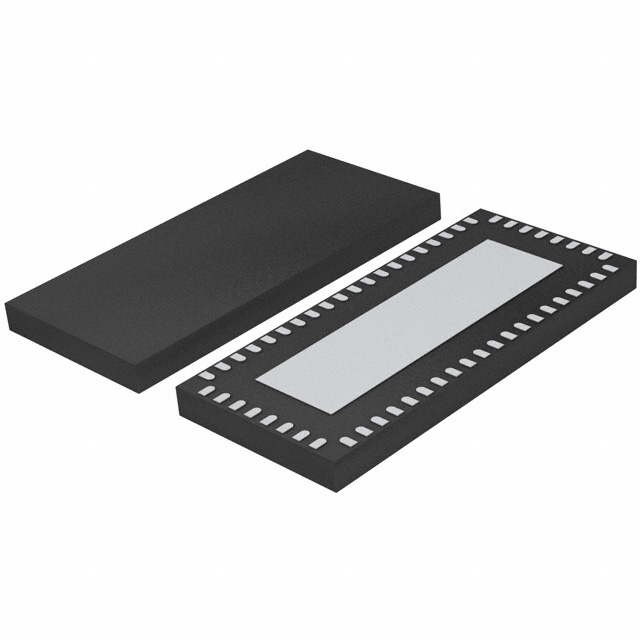

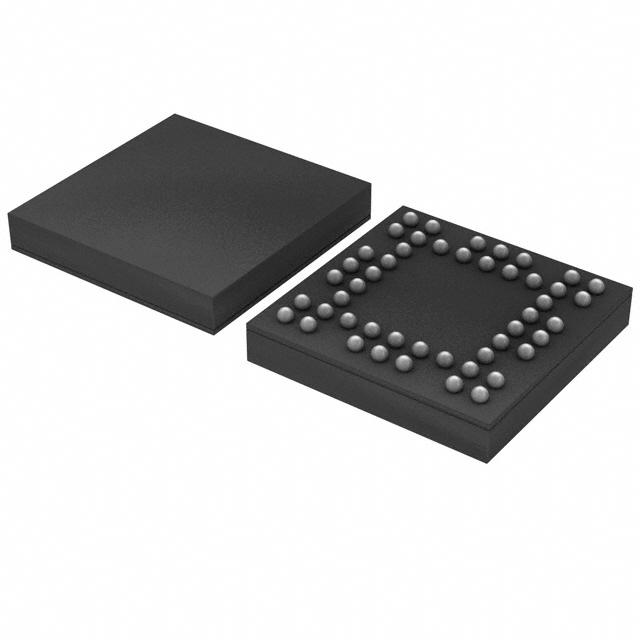

| Part Number | CBTL06121AHF,518 | CBTL06121BHF,518 | CBTL06122BHF,518 | CBTL06141EE/G,118 |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MULTIPLEXER TRPL 1X2 56HVQFN | IC MULTIPLEXER TRPL 1X2 56HVQFN | IC MULTIPLEXER HEX 1X2 56HWQFN | IC MULTIPLEXER 4X1 48TFBGA |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
