CEDM7001 BK PBFREE
lmages are for reference only.CEDM7001 BK PBFREE
MOSFET N-CH 20V 100MA SOT883
DatasheetSC-101, SOT-883
43,666 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 20 V 100mA (Ta) 100mW (Ta) Surface Mount SOT-883
CEDM7001 BK PBFREE
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Central Semiconductor Corp |
| Series | - |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4V |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 10mA, 4V |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Vgs (Max) | 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 9 pF @ 3 V |
| FET Feature | - |
| Power Dissipation (Max) | 100mW (Ta) |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-883 |
| Package / Case | SC-101, SOT-883 |
| Base Product Number | CEDM7001 |
| Gate Charge (Qg) (Max) @ Vgs | 0.57 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | CEDM7001 TR PBFREE | CEDM7001VL TR PBFREE | CEDM7002AE TR PBFREE | CEDM7004 BK PBFREE |
| Manufacturer | Central Semiconductor Corp | Central Semiconductor Corp | Central Semiconductor Corp | Central Semiconductor Corp |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

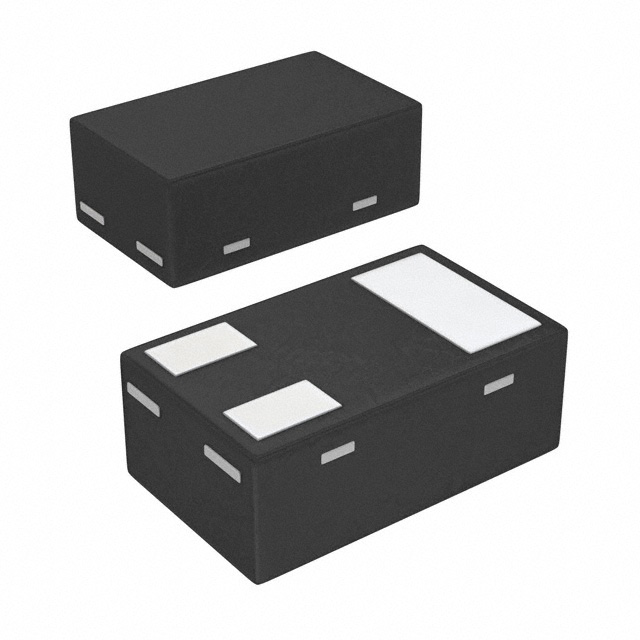

| Description | MOSFET N-CH 20V 100MA SOT883 | MOSFET N-CH 20V 100MA SOT883VL | MOSFET N-CH 60V 300MA SOT883L | MOSFET N-CH 30V 1.78A SOT-883 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Box |
