CGA5H1X7T2J223K115AC

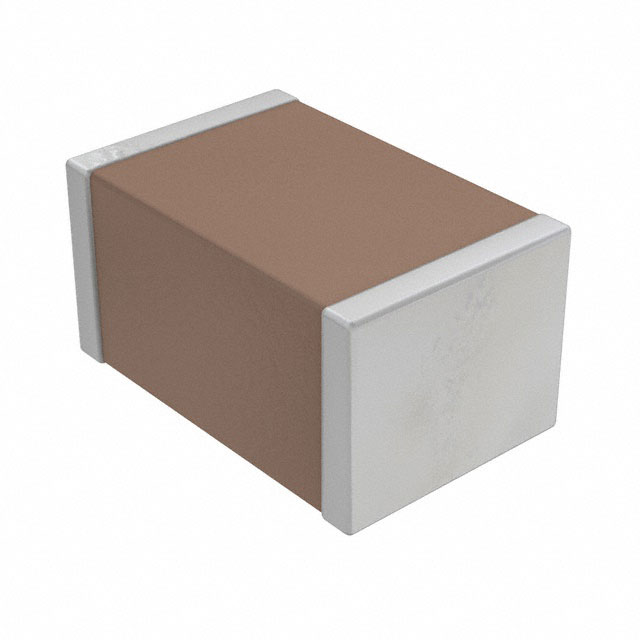

lmages are for reference only.CGA5H1X7T2J223K115AC
CAP CER 0.022UF 630V X7T 1206
Datasheet1206 (3216 Metric)
79,791 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.022 µF ±10% 630V Ceramic Capacitor X7T 1206 (3216 Metric)
CGA5H1X7T2J223K115AC
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | TDK Corporation |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | TDK Corporation |
| Series | CGA |
| Capacitance | 0.022 µF |
| Tolerance | ±10% |
| Voltage - Rated | 630V |
| Temperature Coefficient | X7T |
| Operating Temperature | -55°C ~ 125°C |
| Features | - |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.049" (1.25mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|
| Part Number | CGA5H1X7T2J223M115AC | CGA5H1X7T2J333K115AC | CGA5H1X7T2J333M115AC | CGA5H1X7T2J333M115AC |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 0.022UF 630V X7T 1206 | CAP CER 0.033UF 630V X7T 1206 | CAP CER 0.033UF 630V X7T 1206 | CAP CER 0.033UF 630V X7T 1206 |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
