Product CatalogPart Number
CPC1580PTR
Manufacturer
Littelfuse Inc.Description
OPTOISO 3.75KV GATE DRVR 8FLTPCK
Datasheet
DatasheetPackage
8-SMD, Gull Wing
In Stock
64,974 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CPC1580PTR
CPC1580PTR
lmages are for reference only.Payment Methods
Delivery Services
Gate Driver Optical Coupling 3750Vrms 1 Channel 8-Flatpack
Quick Inquiry
CPC1580PTR
Specifications
| Category | Isolators - Isolators Gate Drivers - |
| Manufacturer | Littelfuse Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | - |
| Propagation Delay tpLH / tpHL (Max) | - |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | - |
| Current - Output High, Low | - |
| Current - Peak Output | - |
| Voltage - Forward (Vf) (Typ) | 1.27V |
| Voltage - Output Supply | - |
| Grade | - |
| Qualification | - |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-Flatpack |
| Approval Agency | UR |
| Base Product Number | CPC1580 |
| Current - DC Forward (If) (Max) | 50 mA |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

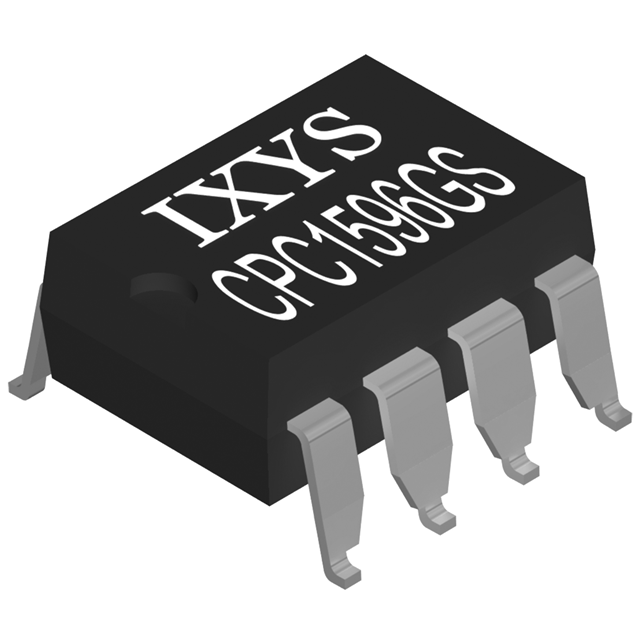

| Part Number | CPC1580P | CPC1590P | CPC1590PTR | CPC1596G |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | IXYS Integrated Circuits Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISO 3.75KV GATE DRVR 8FLTPCK | OPTOISO 3.75KV GATE DRVR 8FLTPCK | OPTOISO 3.75KV GATE DRVR 8FLTPCK | OPTOISO 3.75KV 1CH GATE DVR 8DIP |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | IXYS Integrated Circuits Division |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
