CPDQ03C5V0AU-HF
lmages are for reference only.CPDQ03C5V0AU-HF
DIODE ESD ARRAY 5VWM 60W 0402C-0
DatasheetSC-101, SOT-883
31,416 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount 0402C-03/SOT-883
CPDQ03C5V0AU-HF
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Comchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 15V |
| Current - Peak Pulse (10/1000µs) | 4A (8/20µs) |
| Power - Peak Pulse | 60W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.45pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-101, SOT-883 |
| Supplier Device Package | 0402C-03/SOT-883 |
| Base Product Number | - |
| Unidirectional Channels | 2 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

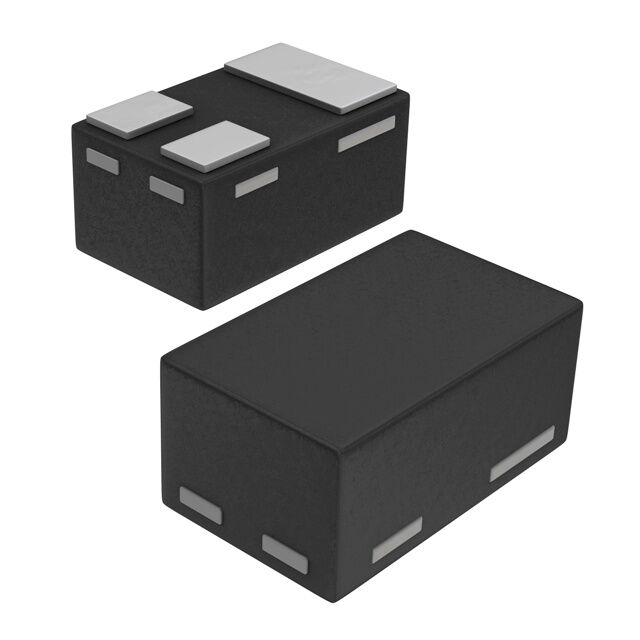

| Part Number | CPDQ03C5V0HP-HF | CPDQ03C5V0UP-HF | CPDQ03C5V0USP-HF | CPDQ03C3V3U-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 5VWM 15VC 0402C-03 | TVS DIODE 5VWM 15VC 0402C-03 | TVS DIODE 5VWM 16VC 0402C-03 | DIODE ESD 3.3VWM 8VC 0402C-03/SO |
| Series | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
