DCP020509U

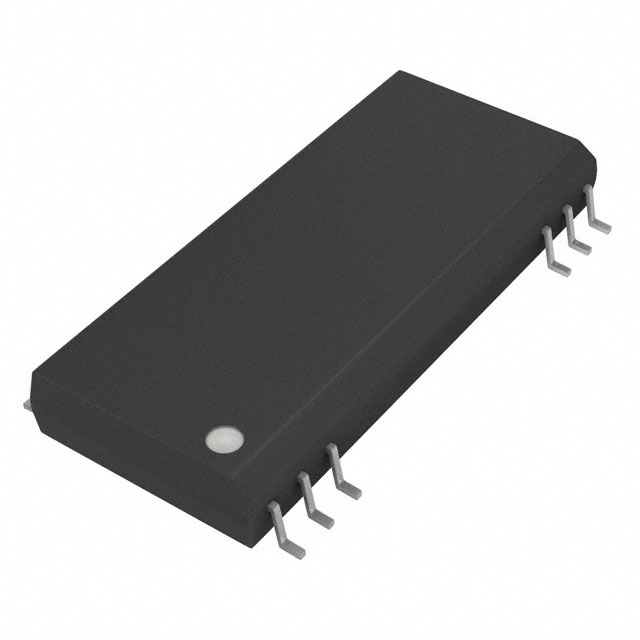

lmages are for reference only.DCP020509U
DC DC CONVERTER 9V 2W
Datasheet28-SOIC (0.295", 7.50mm Width), 12 Leads
98,505 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 9V 222mA 4.5V - 5.5V Input
DCP020509U
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Texas Instruments |
| Series | DCP02 (2W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 222mA |
| Power (Watts) | 2 W |
| Applications | ITE (Commercial) |
| Features | OTP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width), 12 Leads |
| Size / Dimension | 0.71" L x 0.30" W x 0.10" H (18.1mm x 7.6mm x 2.7mm) |
| Supplier Device Package | 12-SOP |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | DCP020509 |
| Voltage - Isolation | 1 kV |
| Product Attribute |  |
 |
|
 |

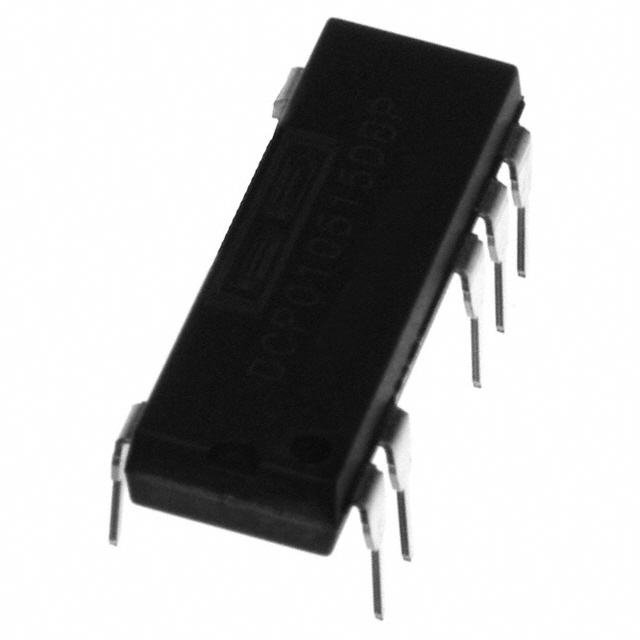

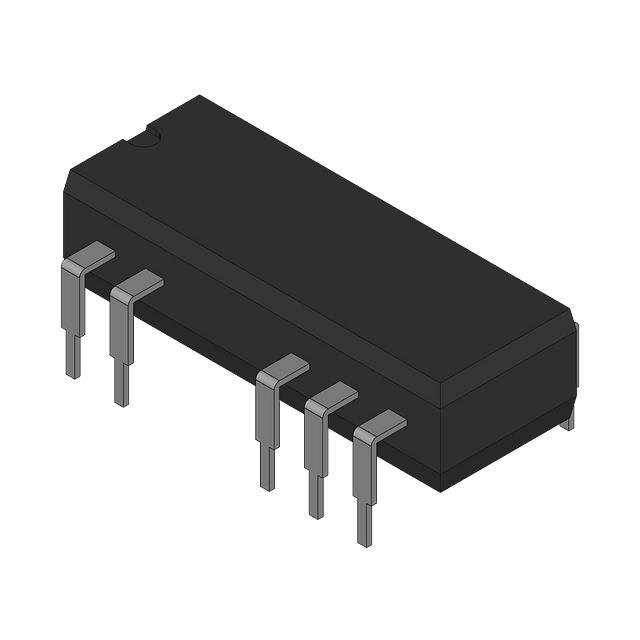

| Part Number | DCP020509P | DCP020503P | DCP020503P | DCP020503U |
| Manufacturer | Texas Instruments | Burr Brown | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DC DC CONVERTER 9V 2W | DCP020503 MINIATURE, 2W ISOLATED | DC DC CONVERTER 3.3V 2W | DC DC CONVERTER 3.3V 2W |
| Series | Texas Instruments | Burr Brown | Texas Instruments | Texas Instruments |
| Packaging | Tube | Bulk | Tube | Tube |
