Product CatalogPart Number
DF52-15S-0.8H(21)
Manufacturer
Hirose Electric Co LtdDescription
CONN SOCKET 15P 0.031 TIN SMD RA
Datasheet
DatasheetPackage
-
In Stock
56,029 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DF52-15S-0.8H(21)
.jpg "DF52-15S-0.8H(21)")
DF52-15S-0.8H(21)
lmages are for reference only.Payment Methods
Delivery Services
15 Position Socket Connector 0.031" (0.80mm) Surface Mount, Right Angle Tin
Quick Inquiry
DF52-15S-0.8H(21)
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Hirose Electric Co Ltd |
| Series | DF52 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Connector Type | Socket |
| Contact Type | Non-Gendered |
| Style | Board to Cable/Wire |
| Number of Positions | 15 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.031" (0.80mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.069" (1.75mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Glow Wire Compliant, Solder Retention |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | 100V |
| Applications | - |
| Insulation Material | Polyamide (PA), Nylon, Halogen Free |
| Contact Shape | - |
| Contact Material | Copper Alloy |
| Contact Finish Thickness - Post | - |
| Base Product Number | DF52 |
Parts with Similar Specifications
| Product Attribute |  |
|
.jpg "DF10-31S-2DSA(59)") |
.jpg "DF10-31S-2DSA(62)") |
| Part Number | DF10-26S-2DSA(62) | DF10-26S-2DSA(72) | DF10-31S-2DSA(59) | DF10-31S-2DSA(62) |
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| RoHS Status | RoHS Compliant | RoHS non-compliant | ||
| Description | CONN RCPT 26POS 0.079 GOLD PCB | CONN 26 PIN FEMALE STRAIGHT | CONN RCPT 31POS 0.079 GOLD PCB | CONN RCPT 31POS 0.079 GOLD PCB |
| Series | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
.jpg "DF52-10S-0.8H(21)")
DF52-10S-0.8H(21)
Hirose Electric Co Ltd
.jpg "DF52-12S-0.8H(21)")
DF52-12S-0.8H(21)
Hirose Electric Co Ltd
.jpg "DF52-14S-0.8H(21)")
DF52-14S-0.8H(21)
Hirose Electric Co Ltd

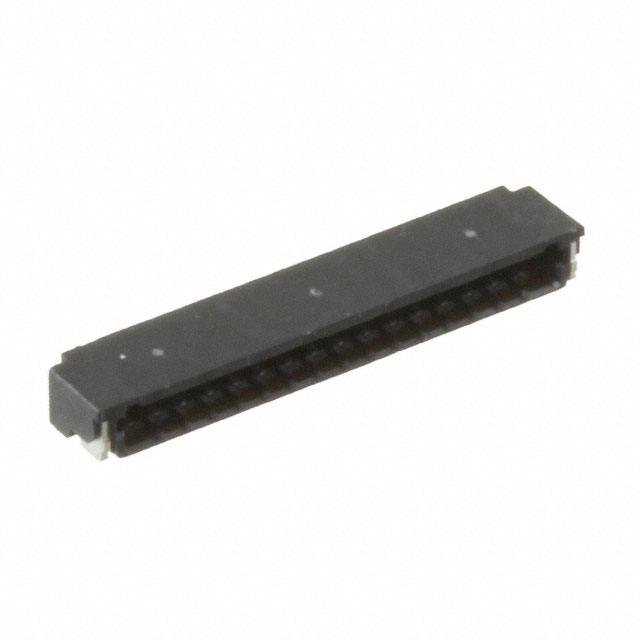

.jpg "DF52-16S-0.8H(21)")
DF52-16S-0.8H(21)
Hirose Electric Co Ltd

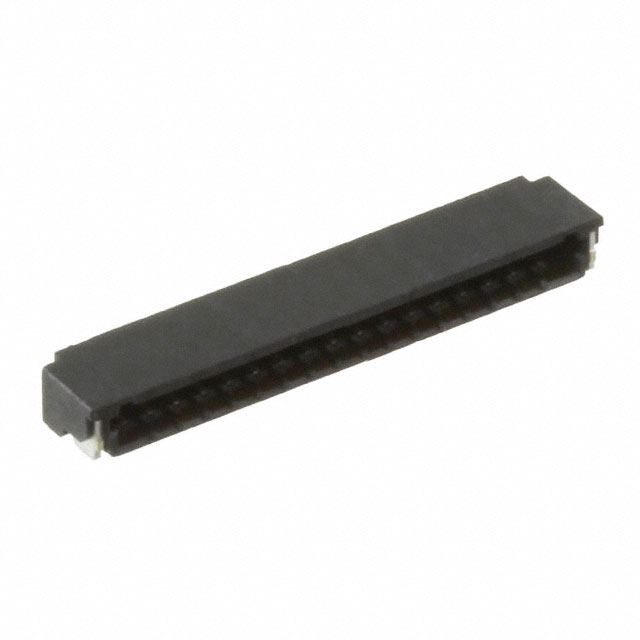

.jpg "DF52-17S-0.8H(21)")
DF52-17S-0.8H(21)
Hirose Electric Co Ltd

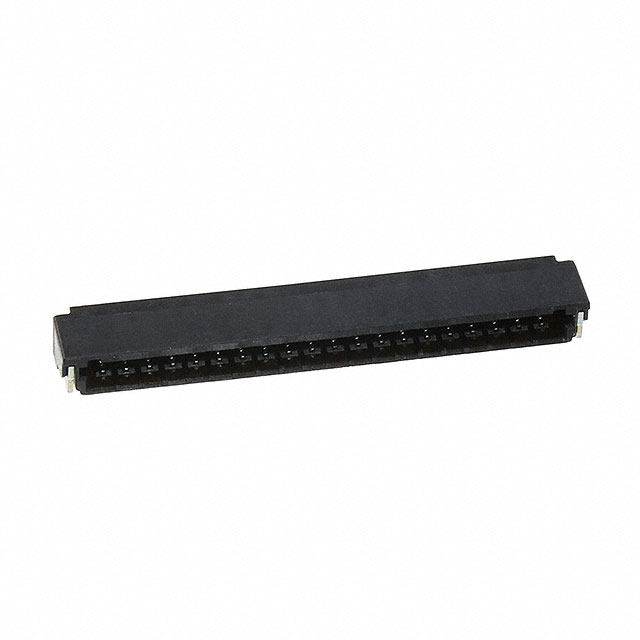

.jpg "DF52-20S-0.8H(21)")
DF52-20S-0.8H(21)
Hirose Electric Co Ltd

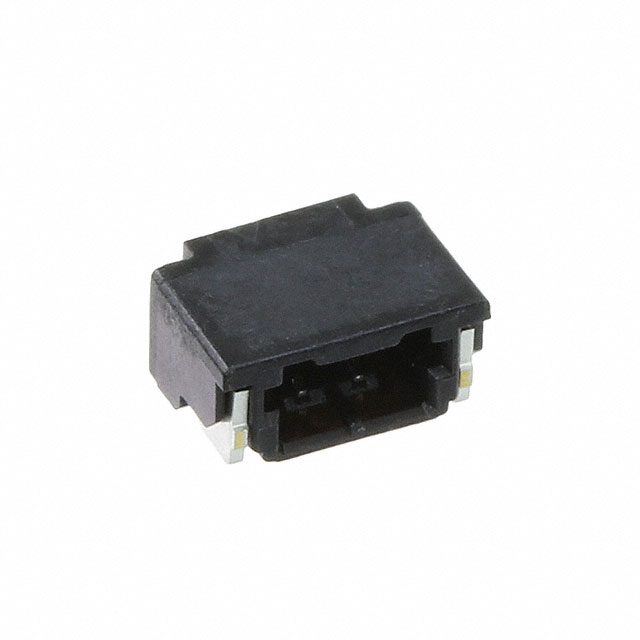

.jpg "DF52-2S-0.8H(21)")
DF52-2S-0.8H(21)
Hirose Electric Co Ltd

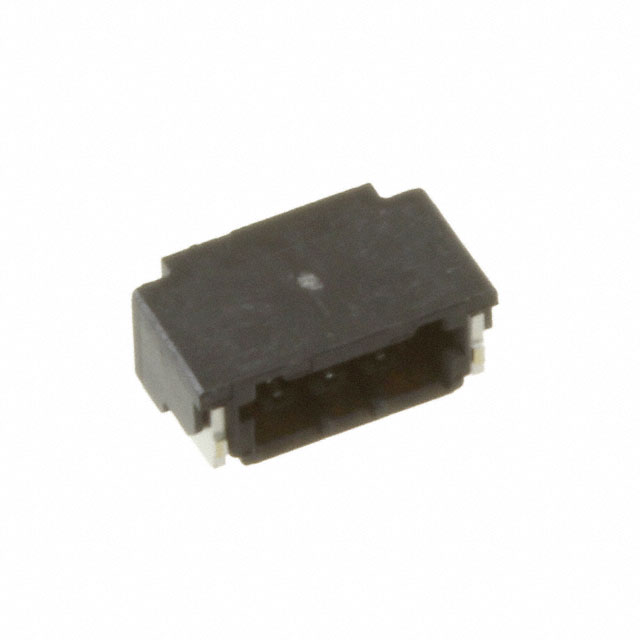

.jpg "DF52-3S-0.8H(21)")
DF52-3S-0.8H(21)
Hirose Electric Co Ltd
DF52-3S-0.8H(51)
Hirose Electric Co Ltd

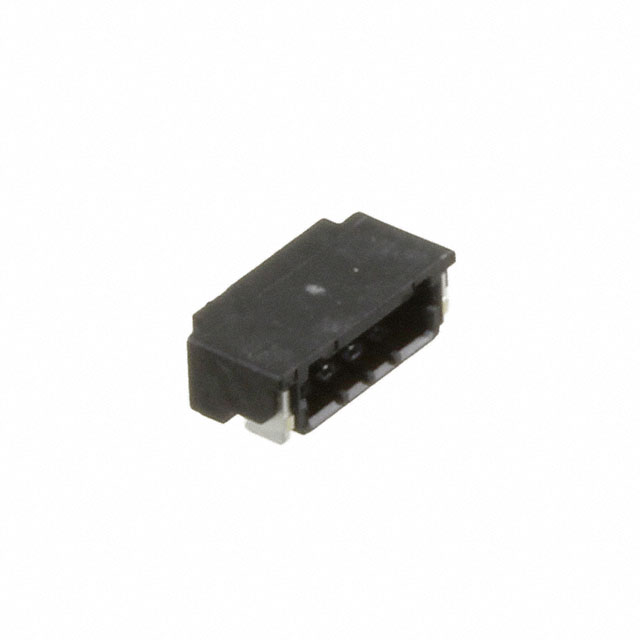

.jpg "DF52-4S-0.8H(21)")
DF52-4S-0.8H(21)
Hirose Electric Co Ltd

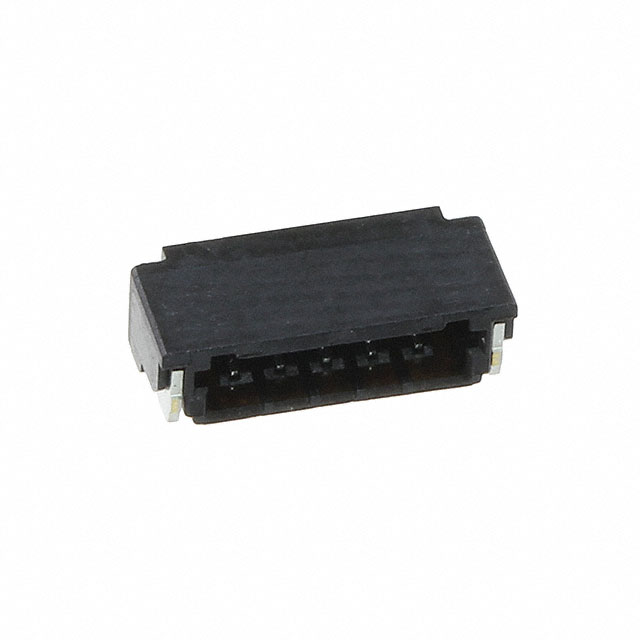

.jpg "DF52-5S-0.8H(21)")
DF52-5S-0.8H(21)
Hirose Electric Co Ltd
DF52-5S-0.8H(51)
Hirose Electric Co Ltd

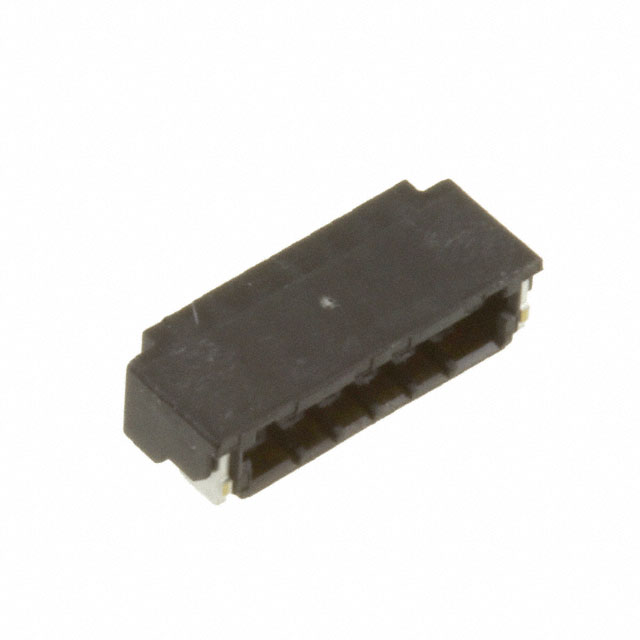

.jpg "DF52-6S-0.8H(21)")
DF52-6S-0.8H(21)
Hirose Electric Co Ltd

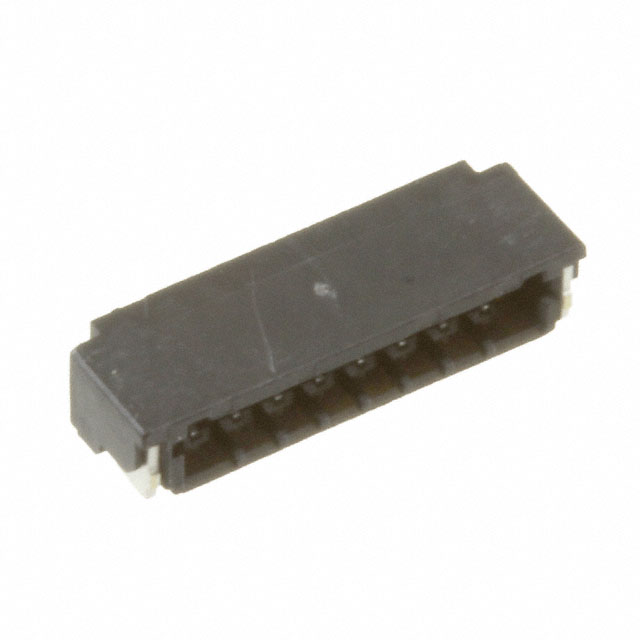

.jpg "DF52-8S-0.8H(21)")
