Product CatalogPart Number
DI035N06PQ2-AQ
Manufacturer
Diotec SemiconductorDescription
MOSFET 2N-CH 60V 35A 8TDSON
Datasheet
DatasheetPackage
8-PowerTDFN
In Stock
63,218 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DI035N06PQ2-AQ
DI035N06PQ2-AQ
lmages are for reference only.Payment Methods
Delivery Services
Mosfet Array 60V 35A (Tc) 35.7W (Tc) Surface Mount TDSON-8-4
Quick Inquiry
DI035N06PQ2-AQ
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Rds On (Max) @ Id, Vgs | 15mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 14.6nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 782pF @ 30V |
| Power - Max | 35.7W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | TDSON-8-4 |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
.jpg "TPC8211(TE12L,Q,M)") |

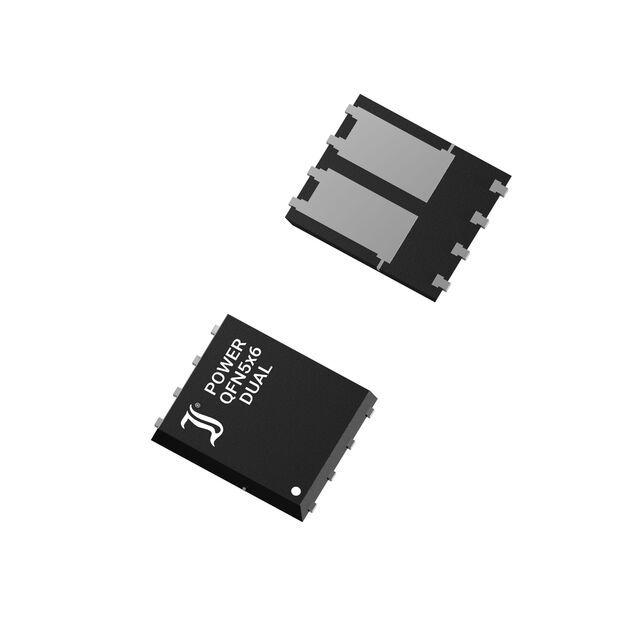

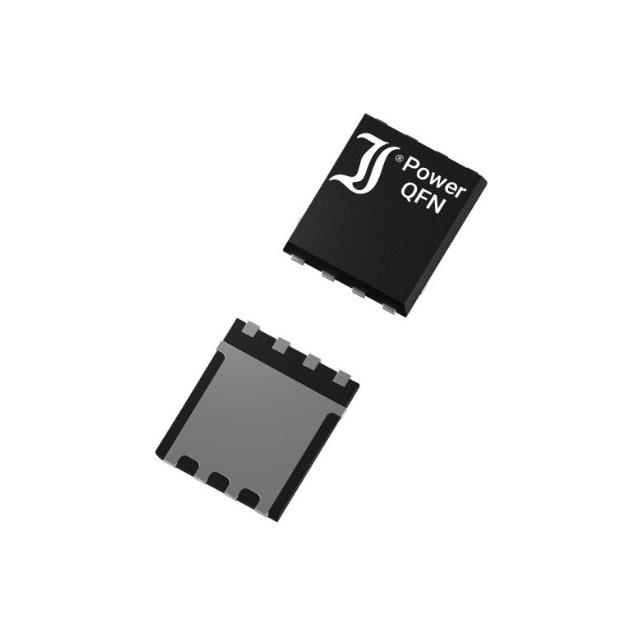

| Part Number | DI035N06PQ2 | DI038N04PQ2 | DI038N04PQ2-AQ | TPC8211(TE12L,Q,M) |
| Manufacturer | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Toshiba Semiconductor and Storage |
| RoHS Status | Not applicable | |||
| Description | MOSFET 2N-CH 60V 35A 8TDSON | MOSFET 2N-CH 45V 38A 8TDSON | MOSFET 2N-CH 45V 38A 8TDSON | MOSFET 2N-CH 30V 5.5A 8SOP |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
