DLW32MH101XK2L
lmages are for reference only.DLW32MH101XK2L
CMC 100UH 100MA 2LN SMD AEC-Q200
DatasheetHorizontal, 4 PC Pad
68,348 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 100mA DCR 3.36Ohm
DLW32MH101XK2L
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Murata Electronics |
| Series | DLW32 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | - |
| Number of Lines | 2 |
| Inductance @ Frequency | 100 µH @ 100 kHz |
| Current Rating (Max) | 100mA |
| DC Resistance (DCR) (Max) | 3.36Ohm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height (Max) | 0.098" (2.50mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | DLW32MH |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

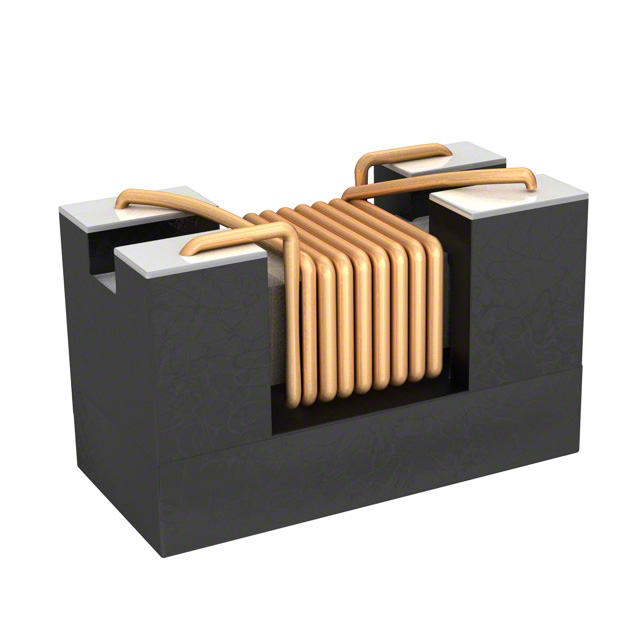

| Part Number | DLW32MH101XT2L | DLW31SH222SQ2L | DLW31SN102SQ2L | DLW31SN161SQ2L |
| Manufacturer | Murata Electronics | Murata Electronics | Murata Electronics | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 100UH 100MA 2LN SMD AEC-Q200 | CMC 80MA 2LN 2.2KOHM SMD AECQ200 | CMC 230MA 2LN 1K OHM SMD | CMC 340MA 2LN 160 OHM SMD |
| Series | DLW32 | DLW31 | DLW31 | DLW31 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
