EEE-HA0J101P

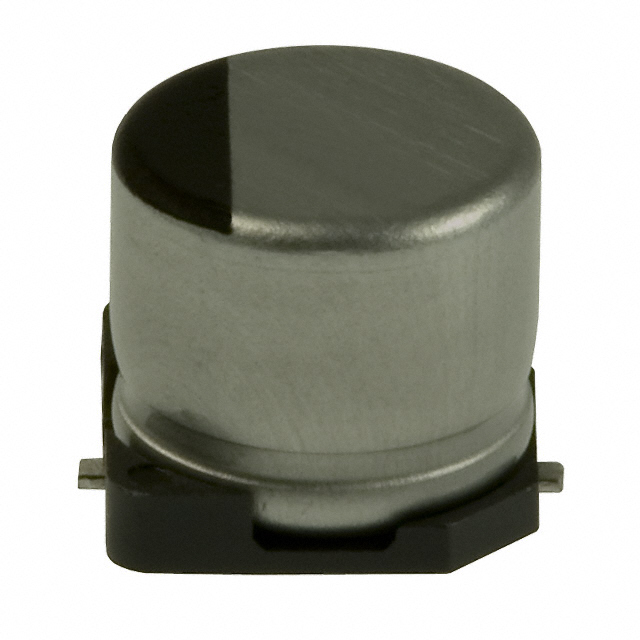

lmages are for reference only.EEE-HA0J101P
CAP ALUM 100UF 20% 6.3V SMD
DatasheetRadial, Can - SMD
60,186 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
EEE-HA0J101P
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | HA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 71 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120.7 mA @ 10 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | EEE-HA |
| Impedance | - |
| Product Attribute |  |
|
 |
 |
| Part Number | EEE-HA0J101AP | EEE-HA0J101AP | EEE-HA0J101WR | EEE-HA0J102AP |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CAP ALUM 100UF 20% 6.3V SMD | CAP ALUM 100UF 20% 6.3V SMD | CAP ALUM 100UF 20% 6.3V SMD | CAP ALUM 1000UF 20% 6.3V SMD |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
