EEU-EB1A332B

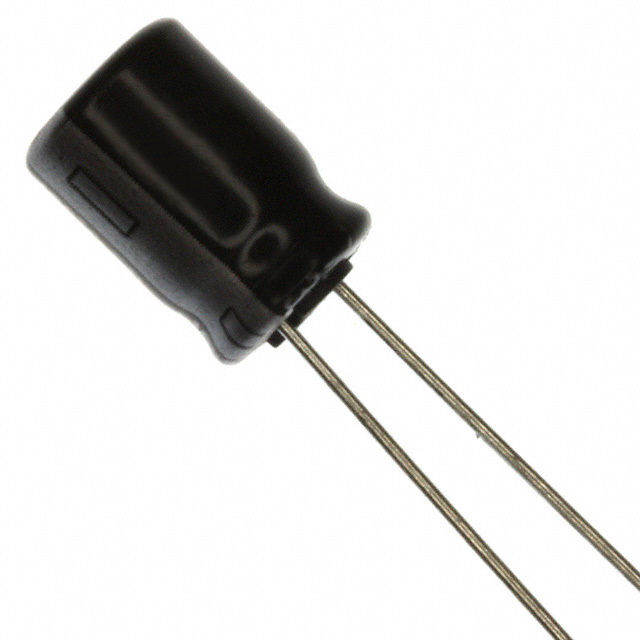

lmages are for reference only.EEU-EB1A332B
CAP ALUM 3300UF 20% 10V RADIAL
DatasheetRadial, Can
35,871 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3300 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
EEU-EB1A332B
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | EB-A |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 802 mA @ 120 Hz |
| Ripple Current @ High Frequency | 922.3 mA @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | EEU-EB |
| Impedance | - |
| Product Attribute |  |
|
 |
|
| Part Number | EEU-EB1A332 | EEU-EB1A332B | EEU-EB1A101 | EEU-EB1A101B |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | CAP ALUM 3300UF 20% 10V RADIAL | CAP ALUM 3300UF 20% 10V RADIAL | CAP ALUM 100UF 20% 10V RADIAL TH | CAP ALUM 100UF 20% 10V RADIAL TH |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Tape & Box (TB) | Bulk | Tape & Box (TB) |
