ESMQ421VSN471MR40S
lmages are for reference only.Payment Methods
Delivery Services
470 µF 420 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C
ESMQ421VSN471MR40S
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | SMQ |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.61 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.732 A @ 50 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
 |
|
 |

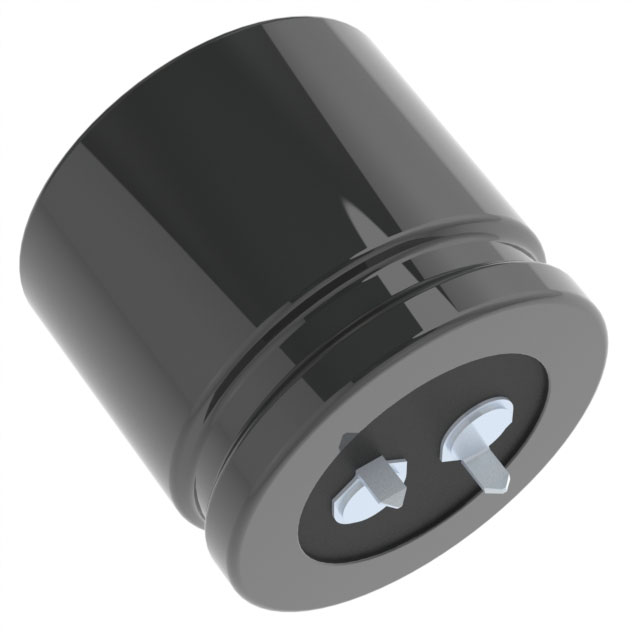

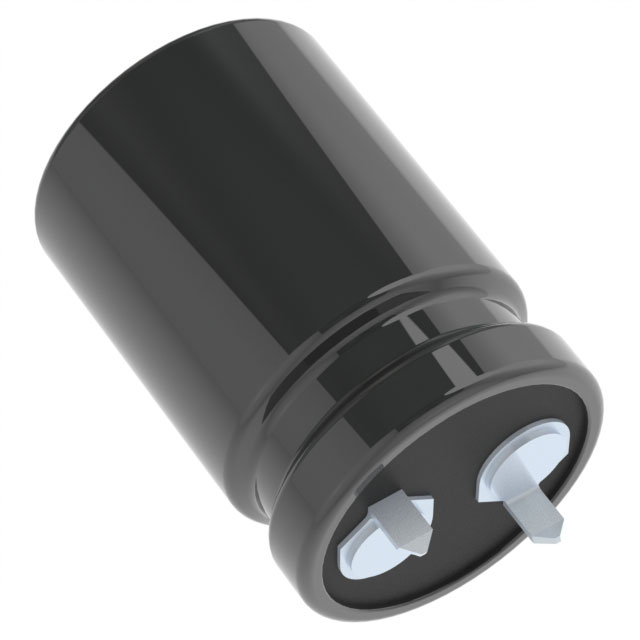

| Part Number | ESMQ421VSN121MP25S | ESMQ421VSN151MP30S | ESMQ421VSN331MQ45S | ESMQ421VSN391MA30S |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 120UF 20% 420V SNAP TH | CAP ALUM 150UF 20% 420V SNAP TH | CAP ALUM 330UF 20% 420V SNAP TH | CAP ALUM 390UF 20% 420V SNAP TH |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
