HCJ0201ZT0R00
lmages are for reference only.HCJ0201ZT0R00
RES 0 OHM JUMPER 1/10W 0201
Datasheet0201 (0603 Metric)
12,819 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0 Ohms Jumper Chip Resistor 0201 (0603 Metric) Automotive AEC-Q200 Metal Foil
HCJ0201ZT0R00
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Stackpole Electronics Inc |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Stackpole Electronics Inc |
| Series | HCJ |
| Resistance | 0 Ohms |
| Tolerance | Jumper |
| Power (Watts) | - |
| Composition | Metal Foil |
| Features | Automotive AEC-Q200 |
| Temperature Coefficient | - |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.012" (0.31mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

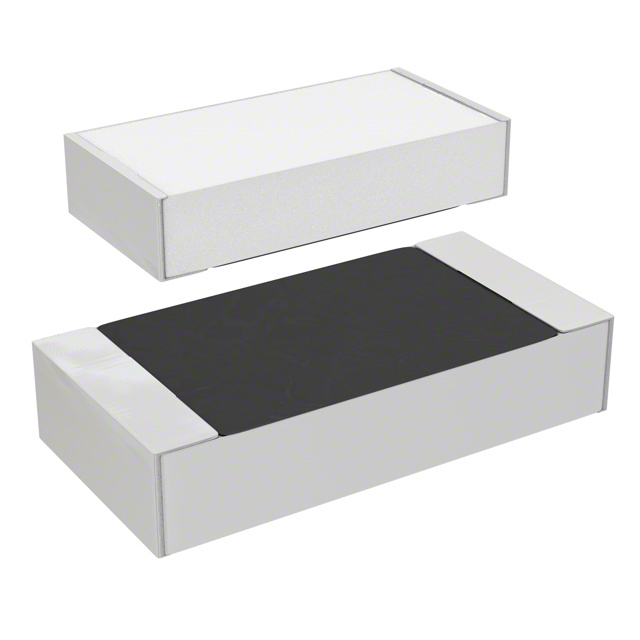

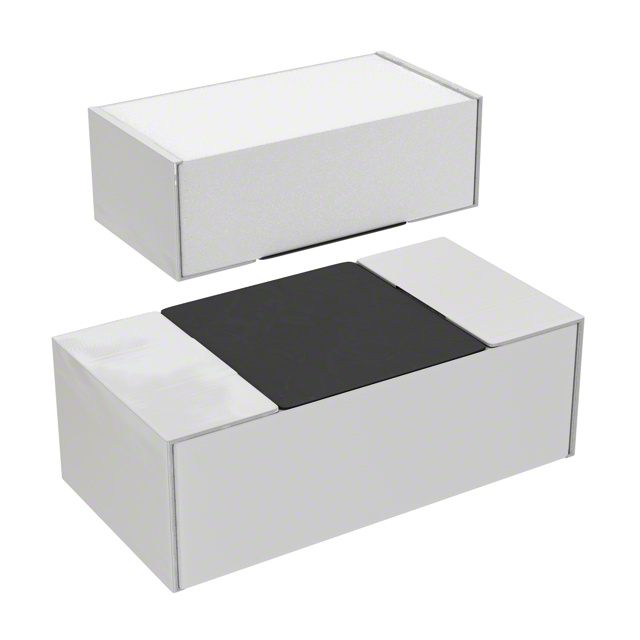

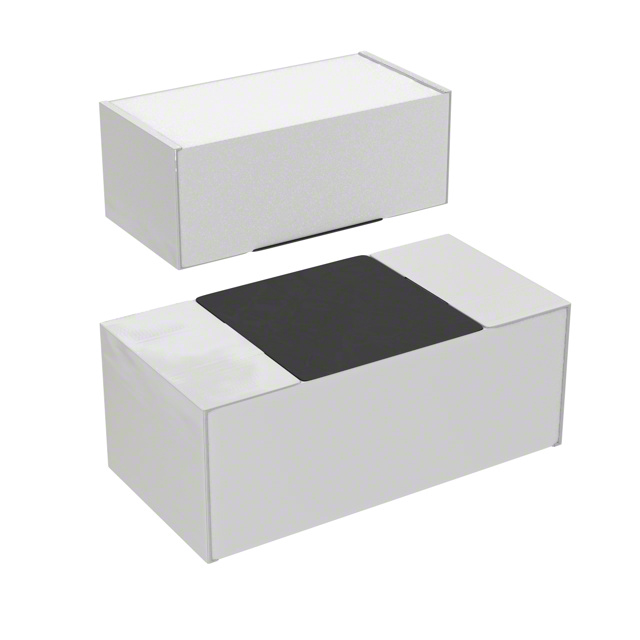

| Part Number | HCJ0402ZT0R00 | HCJ0603ZT0R00 | HCJ0805ZT0R00 | HCJ1206ZT0R00 |
| Manufacturer | Stackpole Electronics Inc | Stackpole Electronics Inc | Stackpole Electronics Inc | Stackpole Electronics Inc |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 0 OHM JUMPER 1/8W 0402 | RES 0 OHM JUMPER 1/4W 0603 | RES 0 OHM JUMPER 1/2W 0805 | RES 0 OHM JUMPER 3/4W 1206 |
| Series | Stackpole Electronics Inc | Stackpole Electronics Inc | Stackpole Electronics Inc | Stackpole Electronics Inc |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
