HVC0805H-100MJ8
lmages are for reference only.HVC0805H-100MJ8
RES SMD 100M OHM 5% 1/8W 0805
Datasheet0805 (2012 Metric)
28,826 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 MOhms ±5% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) High Voltage, Non-Magnetic Thick Film
HVC0805H-100MJ8
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Riedon products by Bourns |
| Series | HVC |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 100 MOhms |
| Tolerance | ±5% |
| Power (Watts) | 0.125W, 1/8W |
| Composition | Thick Film |
| Features | High Voltage, Non-Magnetic |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 300°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | - |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

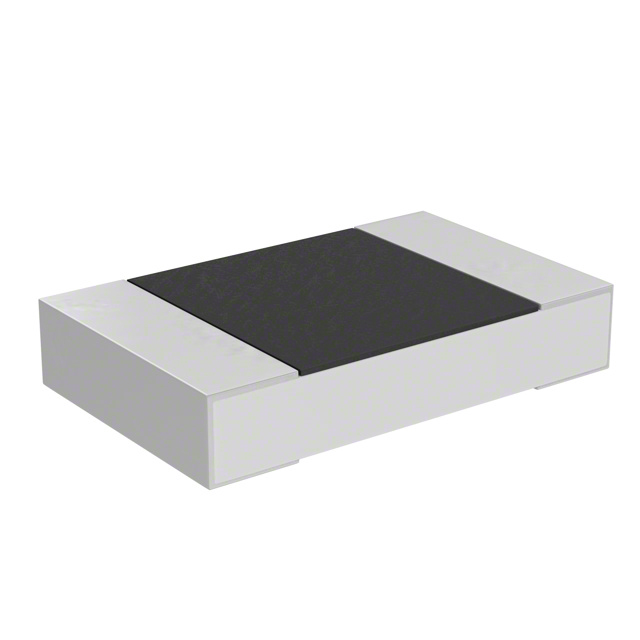

| Part Number | HVC0805H-10MJ8 | HVC0805H-330MK8 | HVC0805H-33MJ8 | HVC0805E5007KET |
| Manufacturer | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns | Ohmite |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES SMD 10M OHM 5% 1/8W 0805 | RES SMD 330M OHM 10% 1/8W 0805 | RES SMD 33M OHM 5% 1/8W 0805 | RES SMD 5G OHM 10% 1/8W 0805 |
| Series | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns | Ohmite |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
