IA0505S-1WR3
lmages are for reference only.IA0505S-1WR3
ISOLATED MODULE DC DC CONVERTER
Datasheet10-SIP Module, 5 Leads
63,763 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.75V - 5.25V Input
IA0505S-1WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 70% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 10-SIP Module, 5 Leads |
| Size / Dimension | 1.08" L x 0.37" W x 0.47" H (27.5mm x 9.5mm x 12.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

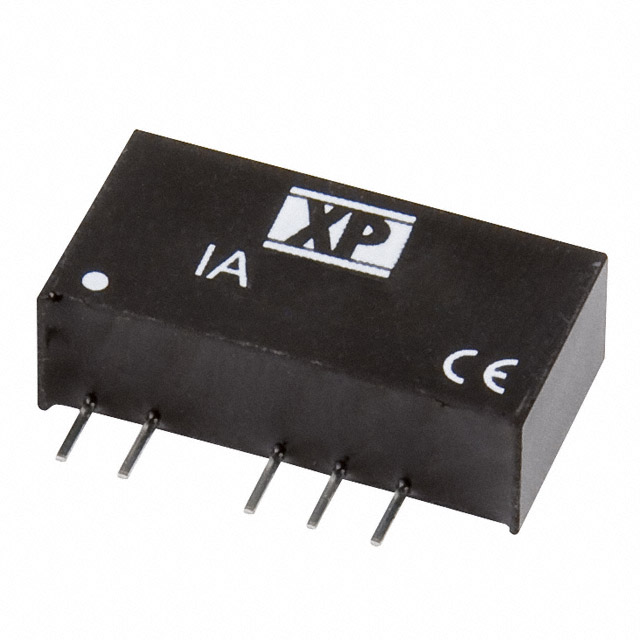

| Part Number | IA0505D | IA0505S | IA0305S | IA0503S |
| Manufacturer | XP Power | XP Power | XP Power | XP Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-5V 1W | DC DC CONVERTER +/-5V 1W | DC DC CONVERTER +/-5V 1W | DC DC CONVERTER +/-3.3V 1W |
| Series | XP Power | XP Power | XP Power | XP Power |
| Packaging | Tube | Tube | Tube | Tube |
