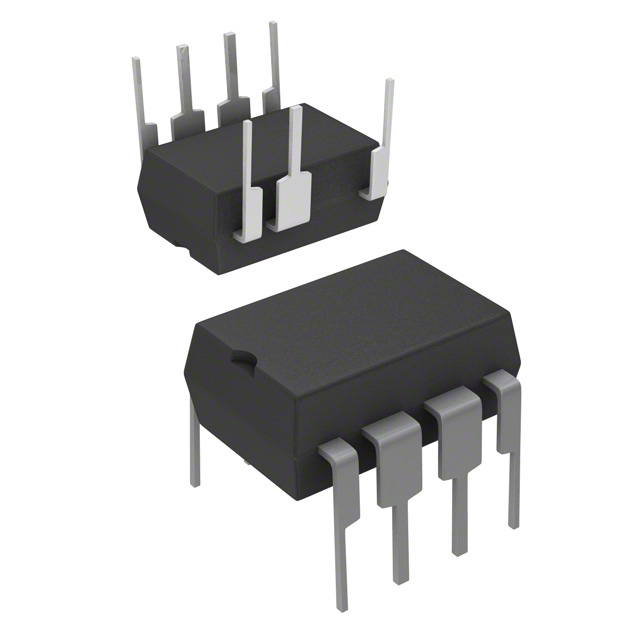

ICE3AR10080JZTXKLA1
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | Infineon Technologies |
| Series | CoolSET®-F3r80 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 10.5V ~ 27V |
| Duty Cycle | 75% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 22 W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage, UVLO |
| Control Features | Soft Start |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | PG-DIP-7-4 |
| Mounting Type | Through Hole |
| Base Product Number | ICE3AR10080 |
| Voltage - Start Up | 17 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ICE3AR10080CJZXKLA1 | ICE3AR10080JZXKLA1 | ICE3A0365FKLA1 | ICE3A0565FKLA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IC OFFLINE SWITCH FLYBACK 7DIP | IC OFFLINE SWITCH FLYBACK 7DIP | IC OFFLINE SWITCH FLYBACK 8DIP | IC OFFLINE SWITCH FLYBACK 8DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
