IRF6795MTRPBF

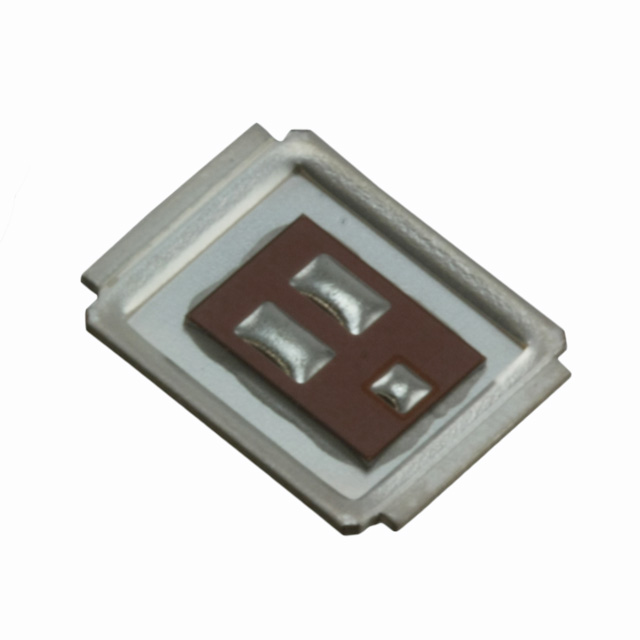

lmages are for reference only.IRF6795MTRPBF
IRF6795 - 12V-300V N-CHANNEL POW
DatasheetDirectFET™ Isometric MX
88,001 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 25 V 32A (Ta), 160A (Tc) 2.8W (Ta), 75W (Tc) Surface Mount DIRECTFET™ MX
IRF6795MTRPBF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | International Rectifier |
| Series | HEXFET® |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 32A (Ta), 160A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.8mOhm @ 32A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 100µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4280 pF @ 13 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta), 75W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DIRECTFET™ MX |
| Package / Case | DirectFET™ Isometric MX |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 53 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | IRF6795MTR1PBF | IRF6795MTRPBF | IRF100B201 | IRF100B201 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | UMW |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 25V 32A DIRECTFET | MOSFET N-CH 25V 32A DIRECTFET | MOSFET N-CH 100V 192A TO220AB | MOSFET N-CH 100V 192A TO220AB |
| Series | HEXFET® | HEXFET® | HEXFET®, StrongIRFET™ | * |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
