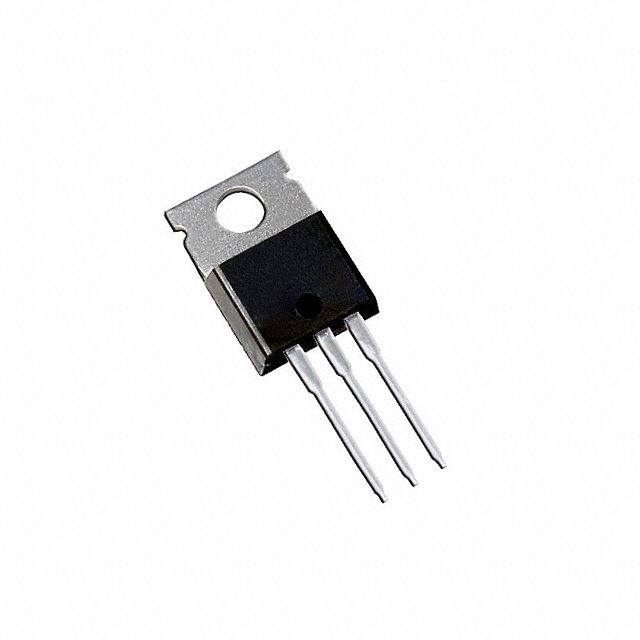

lmages are for reference only.IRG4BC30WPBF
600V WARP 60-150 KHZ DISCRETE IG
DatasheetTO-220-3
73,369 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IGBT 600 V 23 A 100 W Through Hole TO-220AB
IRG4BC30WPBF
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | International Rectifier |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 23 A |
| Current - Collector Pulsed (Icm) | 92 A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 12A |
| Power - Max | 100 W |
| Switching Energy | 130µJ (on), 130µJ (off) |
| Input Type | Standard |
| Gate Charge | 51 nC |
| Td (on/off) @ 25°C | 25ns/99ns |
| Test Condition | 480V, 12A, 23Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB |
| Reverse Recovery Time (trr) | - |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | IRG4BC30WPBF | IRG4BC30W | IRG4BC30W-S | IRG4BC30W-SPBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | |
| Description | IGBT 600V 23A 100W TO220AB | IGBT 600V 23A 100W TO220AB | IGBT 600V 23A 100W D2PAK | IGBT 600V 23A 100W D2PAK |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
