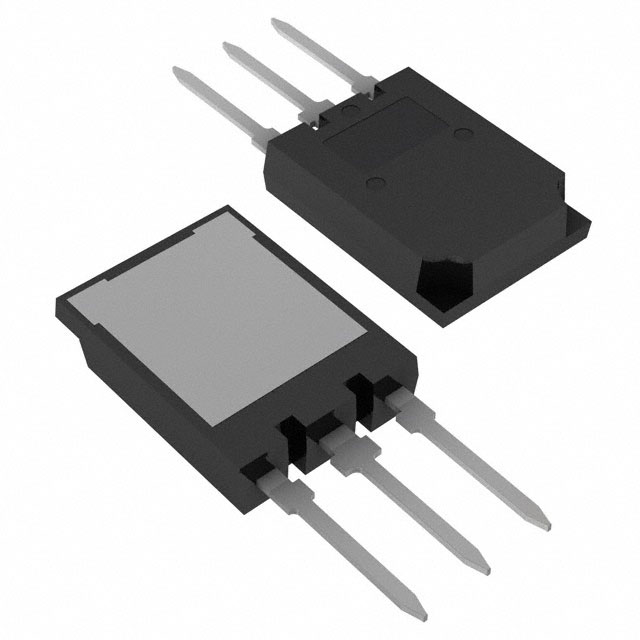

IGBT Trench 1200 V 116 A 462 W Through Hole PG-TO274-3-903
IRG7PSH50UDPBF
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | International Rectifier |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| IGBT Type | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 116 A |
| Current - Collector Pulsed (Icm) | 150 A |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 50A |
| Power - Max | 462 W |
| Switching Energy | 3.6mJ (on), 2.2mJ (off) |
| Input Type | Standard |
| Gate Charge | 440 nC |
| Td (on/off) @ 25°C | 35ns/430ns |
| Test Condition | 600V, 50A, 5Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-274AA |
| Supplier Device Package | PG-TO274-3-903 |
| Reverse Recovery Time (trr) | 190 ns |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | IRG7PSH50UDPBF | IRG7PSH54K10DPBF | IRG7PSH54K10DPBF | IRG7PG35U-EPBF |
| Manufacturer | Infineon Technologies | International Rectifier | Infineon Technologies | International Rectifier |
| RoHS Status | Not applicable | Not applicable | ||
| Description | IGBT TRENCH 1200V 116A TO274 | IGBT, 120A I(C), 1200V V(BR)CES, | IGBT 1200V 120A 520W TO274AA | IGBT |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Tube | Bulk |
