ISP815SMT&R

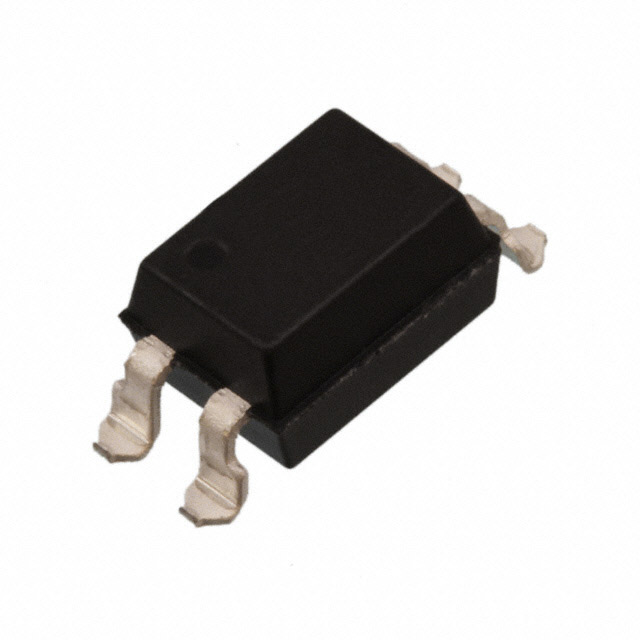

lmages are for reference only.ISP815SMT&R
4PIN DARLINGTON, SINGLE OPTOCOUP
Datasheet4-SMD, Gull Wing
56,474 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Darlington Output 5300Vrms 1 Channel 4-SMD
ISP815SMT&R
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Isocom Components 2004 LTD |
| Series | ISP815 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 600% @ 1mA |
| Current Transfer Ratio (Max) | 7500% @ 1mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 60µs, 53µs |
| Input Type | DC |
| Output Type | Darlington |
| Voltage - Output (Max) | 35V |
| Current - Output / Channel | 80mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 1V |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ISP815SM | ISP814 | ISP814A | ISP814AG |
| Manufacturer | Isocom Components 2004 LTD | Isocom Components 2004 LTD | Isocom Components 2004 LTD | Isocom Components 2004 LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 4PIN DARLINGTON, SINGLE OPTOCOUP | 4PIN AC INPUT, SINGLE OPTOCOUPLE | 4PIN AC INPUT, SINGLE OPTOCOUPLE | 4PIN AC INPUT, SINGLE OPTOCOUPLE |
| Series | ISP815 | ISP814 | ISP814 | ISP814 |
| Packaging | Tube | Tube | Tube | Tube |
