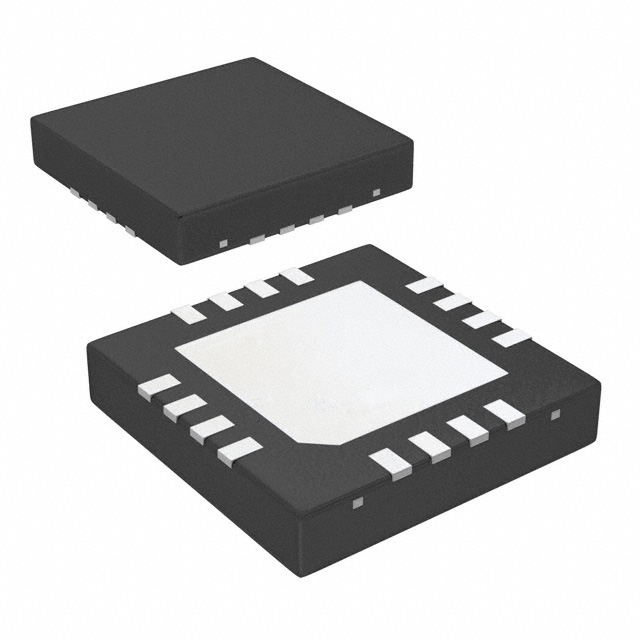

LM3503SQ-16
lmages are for reference only.LM3503SQ-16
IC LED DRV RGLTR PWM 16WQFN
Datasheet16-WFQFN Exposed Pad
50,178 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 2 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 400mA (Switch) 16-WQFN (4x4)
LM3503SQ-16
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | National Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 2 |
| Voltage - Supply (Min) | 2.5V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 16V |
| Current - Output / Channel | 400mA (Switch) |
| Frequency | 1MHz |
| Dimming | Analog, PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (4x4) |
| Base Product Number | LM3503 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

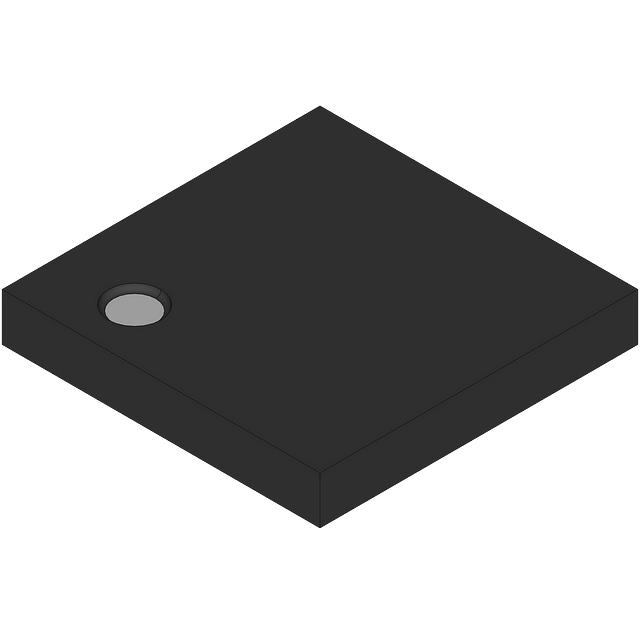

| Part Number | LM3503SQ-16 | LM3503SQ-16/NOPB | LM3503SQ-25 | LM3503SQ-25/NOPB |
| Manufacturer | Texas Instruments | Texas Instruments | National Semiconductor | Texas Instruments |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | IC LED DRV RGLTR PWM 16WQFN | IC LED DRV RGLTR PWM 16WQFN | IC LED DRV RGLTR PWM 16WQFN | IC LED DRIVER RGLTR DIM 16WQFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
