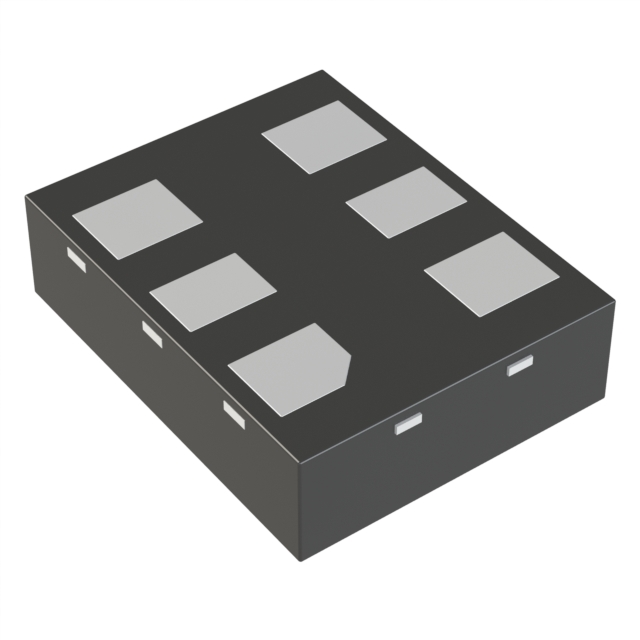

LMK6DE050000ADLER
lmages are for reference only.LMK6DE050000ADLER
LOW-JITTER, HIGH-PERFORMANCE, BU
Datasheet6-VDFN Exposed Pad
35,720 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
50 MHz XO (Standard) LVDS Oscillator 2.5V, 3.3V Enable/Disable 6-VDFN Exposed Pad
LMK6DE050000ADLER
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Texas Instruments |
| Series | LMK6x |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 50 MHz |
| Function | Enable/Disable |
| Output | LVDS |
| Voltage - Supply | 2.5V, 3.3V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | - |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute | |
|
|
 |
| Part Number | LMK6DE050000ADLET | LM113-200.0M | LM113-200.0M-T | LM113-288.0M |
| Manufacturer | Texas Instruments | Connor Winfield | Connor Winfield | Connor Winfield |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LOW-JITTER, HIGH-PERFORMANCE, BU | XTAL OSC XO 200.0000MHZ LVDS SMD | XTAL OSC XO 200.0000MHZ LVDS SMD | XTAL OSC XO 288.0000MHZ LVDS SMD |
| Series | Texas Instruments | Connor Winfield | Connor Winfield | Connor Winfield |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Strip | Tape & Reel (TR) | Strip |
