LTC3569EUD#TRPBF

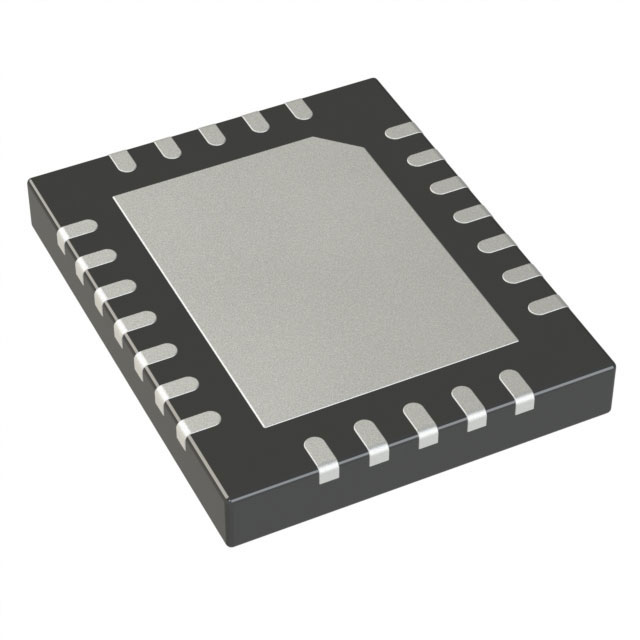

lmages are for reference only.LTC3569EUD#TRPBF
IC REG BUCK ADJ TRPL 20QFN
Datasheet20-WFQFN Exposed Pad
84,416 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Switching Regulator IC Positive Adjustable 0.425V 3 Output 600mA, 1.2A 20-WFQFN Exposed Pad
LTC3569EUD#TRPBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 3 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.425V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 600mA, 1.2A |
| Frequency - Switching | 2.25MHz, 1MHz ~ 3MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (3x3) |
| Base Product Number | LTC3569 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | LTC3569EUD#PBF | LTC3569EUDC#PBF | LTC3569EUDC#TRPBF | LTC3560ES6#TR |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG BUCK ADJ TRPL 20QFN | IC REG BUCK ADJ TRPL 20QFN | IC REG BUCK ADJ TRPL 20QFN | IC REG BUCK ADJ 800MA TSOT23-6 |
| Series | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
