LTC3809EMSE-1#PBF

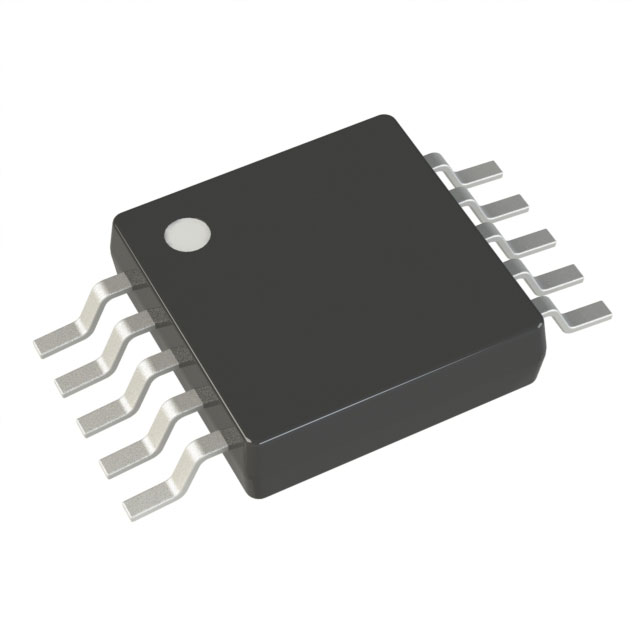

lmages are for reference only.LTC3809EMSE-1#PBF
LTC3809-1 - NO RSENSE, LOW EMI D
Datasheet10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
23,447 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Regulator Positive Output Step-Down DC-DC Controller IC 10-MSOP-EP
LTC3809EMSE-1#PBF
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Linear Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2.75V ~ 9.8V |
| Frequency - Switching | 550kHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Dead Time Control, Enable, Frequency Control, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
| Base Product Number | LTC3809 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | LTC3809EMSE-1#PBF | LTC3809EMSE-1#TRPBF | LTC3809EMSE#PBF | LTC3809EMSE#TRPBF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG CTRLR BUCK 10MSOP | IC REG CTRLR BUCK 10MSOP | IC REG CTRLR BUCK 10MSOP | IC REG CTRLR BUCK 10MSOP |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
