MAL226065102E3
lmages are for reference only.MAL226065102E3
CAP ALUM 1000UF 20% 16V RADIAL
DatasheetRadial, Can
99,440 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 150°C
MAL226065102E3
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | 260 RLA-V |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 560 mA @ 100 Hz |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | 29 mOhms |
| Product Attribute |  |
|
 |
 |

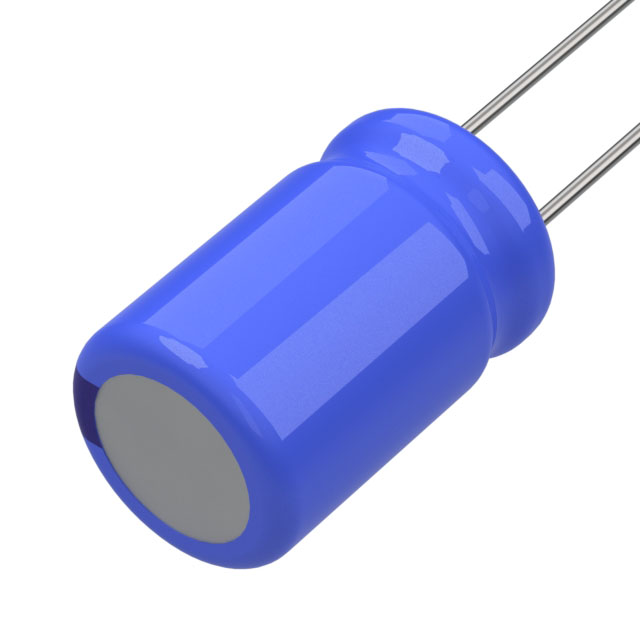

| Part Number | MAL226060102E3 | MAL226060102E3 | MAL226060471E3 | MAL226060681E3 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 1000UF 20% 35V RADIAL | CAP ALUM 1000UF 20% 35V RADIAL | CAP ALUM 470UF 20% 35V RADIAL TH | CAP ALUM 680UF 20% 35V RADIAL TH |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Box | Box | Box | Box |
