MCP2004A-E/MD
lmages are for reference only.MCP2004A-E/MD
IC TRANSCEIVER HALF 1/1 8DFN
Datasheet8-VDFN Exposed Pad
31,047 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1/1 Transceiver Half LINbus 8-DFN (4x4)
MCP2004A-E/MD
| Category | Integrated Circuits (ICs) - Interface - Drivers-Receivers-Transceivers |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Transceiver |
| Protocol | LINbus |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 175 mV |
| Data Rate | - |
| Voltage - Supply | 6V ~ 27V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-DFN (4x4) |
| Base Product Number | MCP2004 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

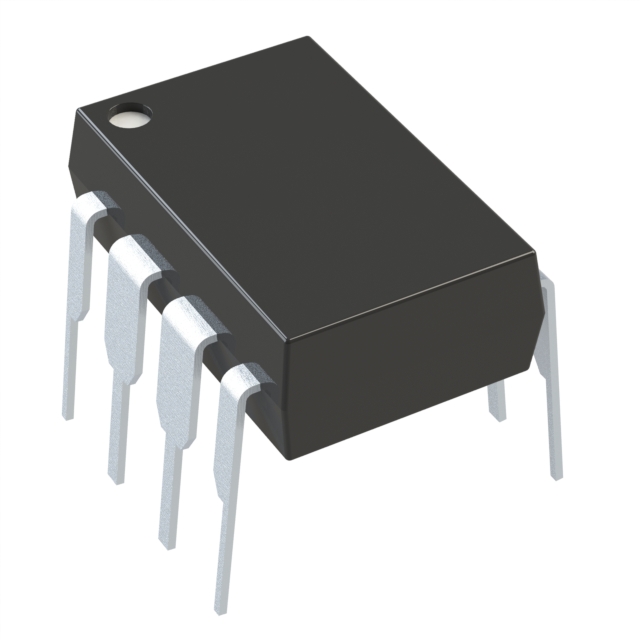

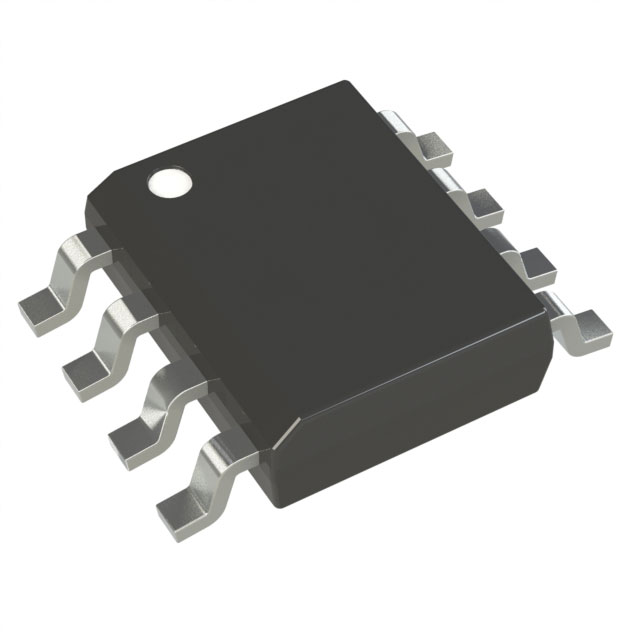

| Part Number | MCP2004A-E/P | MCP2004A-E/SN | MCP2004-E/MD | MCP2004-E/P |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC TRANSCEIVER HALF 1/1 8DIP | IC TRANSCEIVER HALF 1/1 8SOIC | IC TRANSCEIVER HALF 1/1 8DFN | IC TRANSCEIVER HALF 1/1 8DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
