MMBZ27VDA-HE3_A-08
lmages are for reference only.MMBZ27VDA-HE3_A-08
DIODE ZENER 27V 225MW SOT23
DatasheetTO-236-3, SC-59, SOT-23-3
17,464 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
38V Clamp 1A Ipp Tvs Diode Surface Mount SOT-23-3
MMBZ27VDA-HE3_A-08
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 22V |
| Voltage - Breakdown (Min) | 25.65V |
| Voltage - Clamping (Max) @ Ipp | 38V |
| Current - Peak Pulse (10/1000µs) | 1A |
| Power - Peak Pulse | 40W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | - |
| Unidirectional Channels | 2 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | MMBZ27VDA-HE3_A-18 | MMBZ10VAL,215 | MMBZ10VAL-7 | MMBZ10VAL-7-F |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Nexperia USA Inc. | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | DIODE ZENER 40W 1MA 27V SOT23 | TVS DIODE 6.5VWM 14.2VC TO236AB | TVS DIODE 6.5VWM 14.2VC SOT23 | TVS DIODE 6.5VWM 14.2VC SOT23 |
| Series | Vishay General Semiconductor - Diodes Division | Nexperia USA Inc. | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |

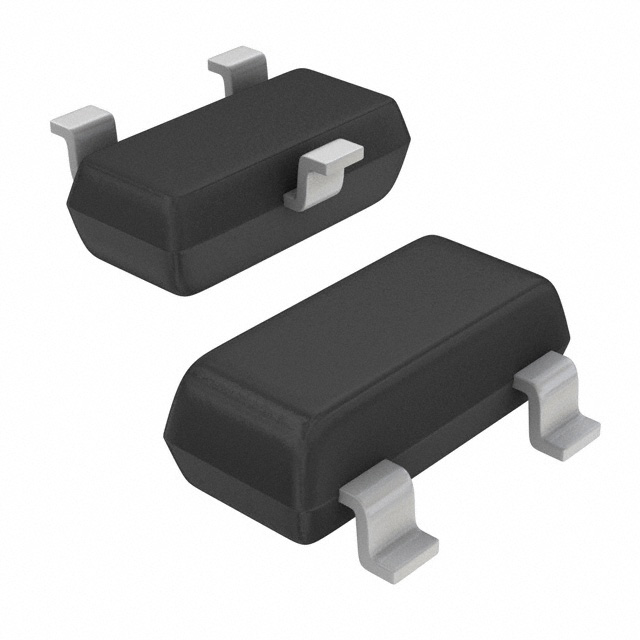

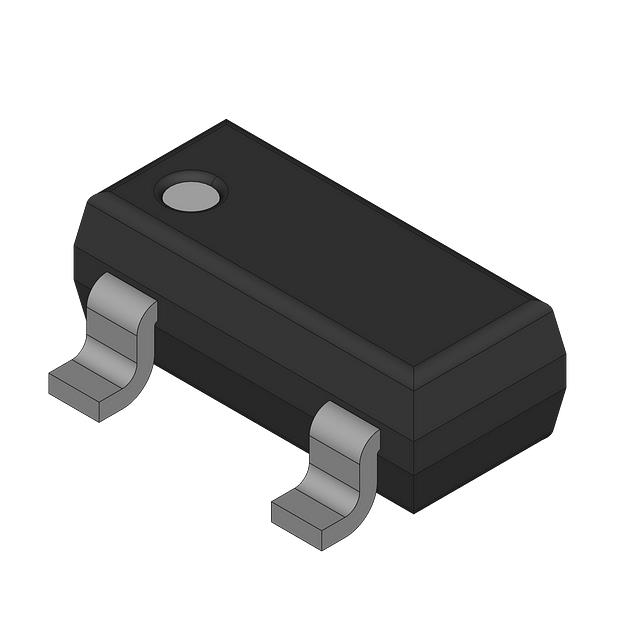

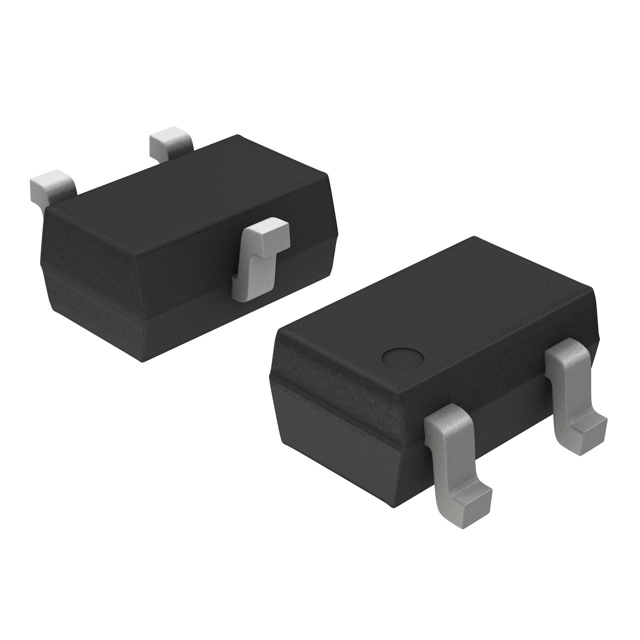

Recommended Products
