MPM3690GBF-20A-T
lmages are for reference only.MPM3690GBF-20A-T
DC DC CONVERTER 3.3V 0.6 - 3.3V
Datasheet144-BBGA Module
49,217 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 2 Output 0.6 ~ 3.3V 0.6 ~ 3.3V 13A, 13A 4V - 16V Input
MPM3690GBF-20A-T
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | MPM |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 16V |
| Voltage - Output 1 | 0.6 ~ 3.3V |
| Voltage - Output 2 | 0.6 ~ 3.3V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 13A, 13A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote Sense |
| Operating Temperature | -40°C ~ 125°C (With Derating) |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 144-BBGA Module |
| Size / Dimension | 0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.2mm) |
| Supplier Device Package | 144-BGA (16x16) |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |

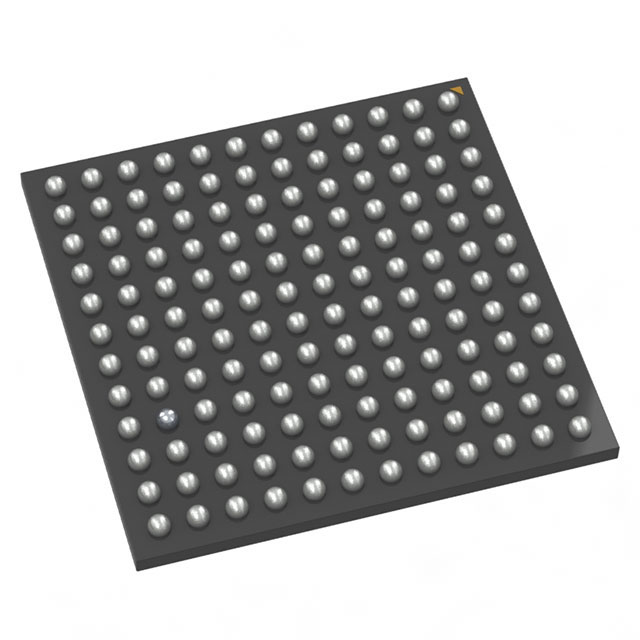

| Part Number | MPM3690GBF-20B-T | MPM3690GBF-30A-T | MPM3690GBF-30B-T | MPM3690GBF-50A-T |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 3.3V | DC DC CONVERTER 2X3.3V | DC DC CONVERTER 3.3V | DC DC CONVERTER 2X1.8V |
| Series | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| Packaging | Tray | Tray | Tray | Tray |
