NC7ST86M5

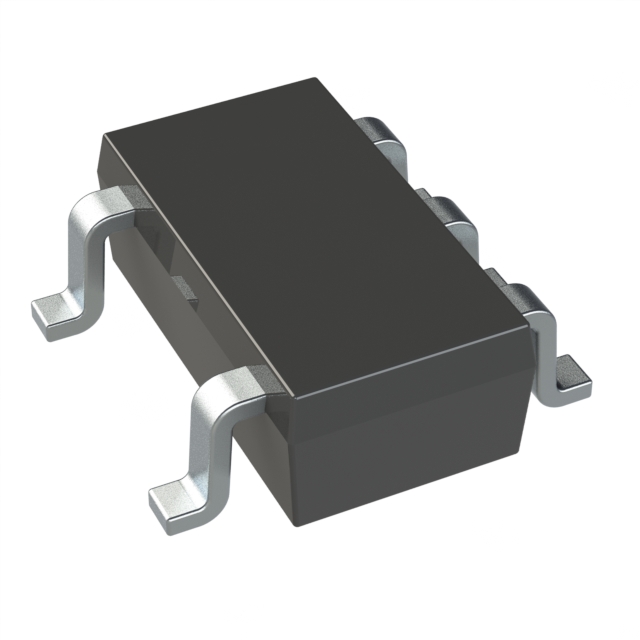

lmages are for reference only.NC7ST86M5
IC GATE XOR 1CH 2-INP SOT23-5
DatasheetSC-74A, SOT-753
23,342 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
XOR (Exclusive OR) IC 1 Channel SOT-23-5
NC7ST86M5
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | Fairchild Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 7ST86 |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 2mA, 2mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 28ns @ 5.5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | NC7ST86M5 | NC7ST86M5X | NC7ST86M5X-L22090 | NC7ST86L6X |
| Manufacturer | onsemi | onsemi | onsemi | Fairchild Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IC GATE XOR 1CH 2-INP SOT23-5 | IC GATE XOR 1CH 2-INP SOT23-5 | IC GATE XOR 1CH 2-INP SOT23-5 | IC GATE XOR 1CH 2-INP 6MICROPAK |
| Series | 7ST | 7ST | 7ST | 7ST |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
